5-2301994-7

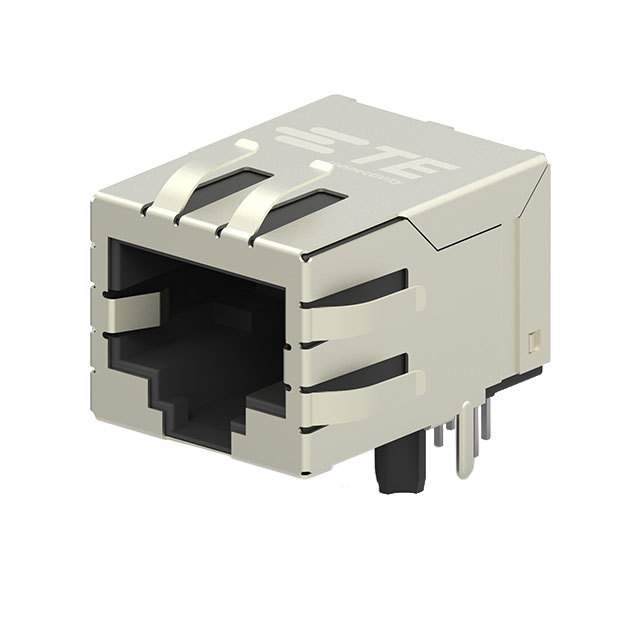

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-2301994-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-2301994-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-2301994-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MAGJACK 1PORT 1000 BASE-T |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.071 | $2.938 | $2.671 | $2.537 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.47 | $2.203 | $2.07 | $1.829 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-2301994-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MAGJACK 1PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20304 pcs | Data sheet | RJ45 Jacks Spec Sheet5-2301994-7 DrawingRJ45 Jacks Datasheet |
| Category | Connectors, Interconnects | Termination | Solder |
| Tab Direction | Down | Shielding | Shielded, EMI Finger |
| Shield Material | Brass | Series | - |
| Packaging | Tray | Other Names | A126256 |
| Orientation | 90° Angle (Right) | Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Ports | 1 |
| Number of Cores per Jack | 8 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | LED Color | Does Not Contain LED |
| Housing Material | Liquid Crystal Polymer (LCP) | Height Above Board | 0.537" (13.65mm) |
| Features | Board Lock | Detailed Description | 1 Port RJ45 Magjack Connector Panel Mount, Through Hole 10/100/1000 Base-T, AutoMDIX |
| Contact Material | Copper Alloy | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
