5-146087-1

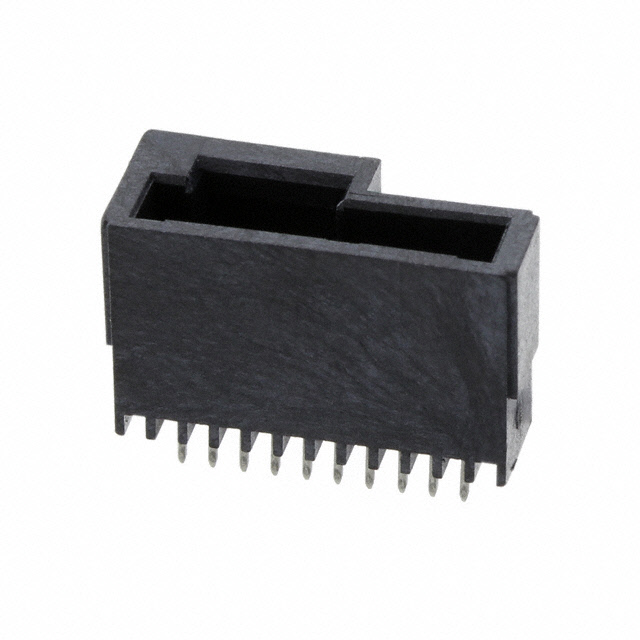

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5-146087-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5-146087-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5-146087-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 10SYSTEM50HDRSRSTSHRDSN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5376 pcs | ||||
|---|---|---|---|---|---|
| $0.378 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5-146087-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 10SYSTEM50HDRSRSTSHRDSN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80557 pcs | Data sheet | 146087 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU System 50 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | A108441 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.390" (9.91mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 10 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.100" (2.54mm) |
| Contact Length - Mating | 0.125" (3.18mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
