4-87422-0

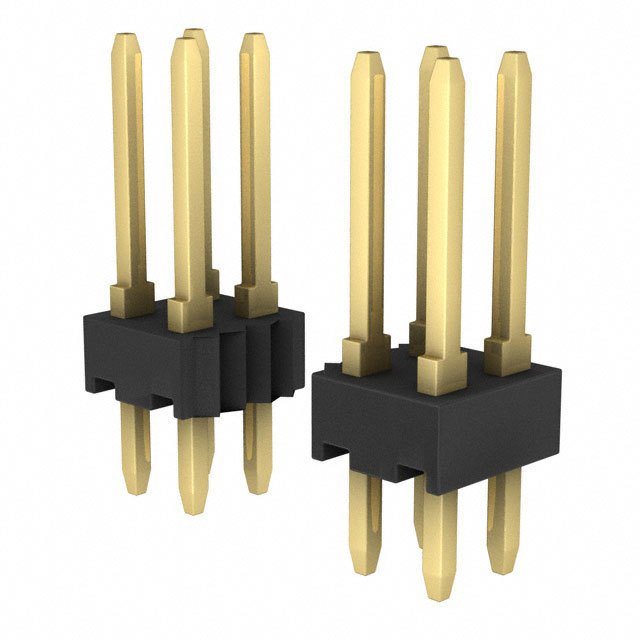

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 4-87422-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 4-87422-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 4-87422-0 |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | CONN HDR 80POS STRGHT DUAL ROW |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | 4-87422-0 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN HDR 80POS STRGHT DUAL ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5172 pcs | Data sheet | 87422 Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Unshrouded | Series | AMPMODU Mod II |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Overall Contact Length | 0.927" (23.55mm) |
Other Names | 4-87422-0-ND A113745 |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 80 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.090" (2.29mm) |
Insulation Color | Black | Ingress Protection | - |
Features | - | Fastening Type | Push-Pull |
Detailed Description | Connector Header Through Hole 80 position 0.100" (2.54mm) | Current Rating | - |
Contact Type | Male Pin | Contact Shape | Square |
Contact Material | Phosphor Bronze | Contact Length - Post | 0.520" (13.21mm) |
Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
Contact Finish - Mating | Gold | Connector Type | Header |
Applications | - |
