322366

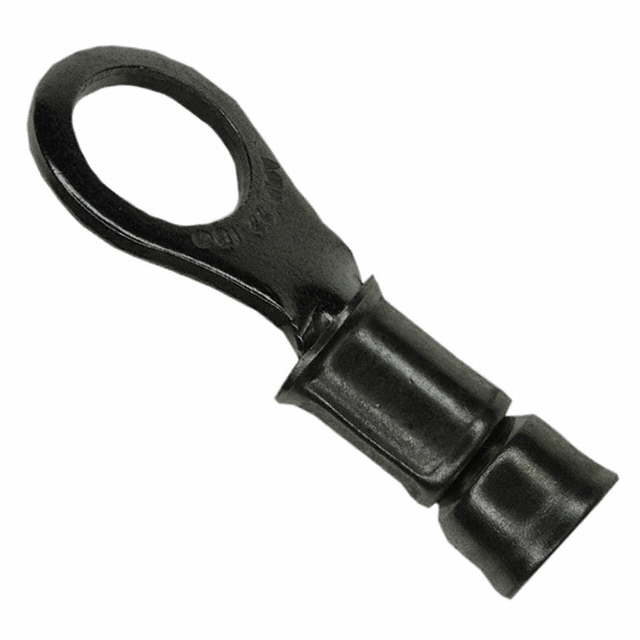

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 322366 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 322366 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 322366 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RING CIRC 16-22AWG #10 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.474 | $0.417 | $0.392 | $0.376 | $0.36 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.327 | $0.294 | $0.262 | $0.237 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 322366 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RING CIRC 16-22AWG #10 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80019 pcs | Data sheet | 322366 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.281" (7.14mm) | Thickness | 0.031" (0.79mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 10 Stud | Series | Diamond Grip, Strato-Therm |
| Packaging | Bulk | Other Names | 322366-ND A27407 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Overall | 0.749" (19.02mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.105" ~ 0.140" (2.67mm ~ 3.56mm) | Insulation | Non-Insulated |
| Features | High Temperature, Serrated Termination | Detailed Description | Ring Terminal Connector 10 Stud Circular 16-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Nickel |
| Color | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
