3-794625-4

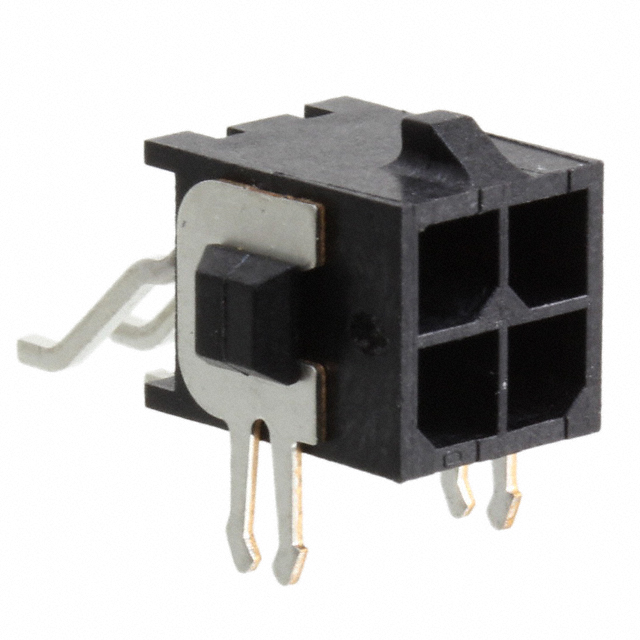

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 3-794625-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 3-794625-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 3-794625-4 |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | CONN HEADR 4POS DL R/A 15AU SMD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 150 pcs | 300 pcs | 750 pcs | 1050 pcs | |
---|---|---|---|---|---|
$0.659 | $0.596 | $0.533 | $0.471 | ||
1500 pcs | 3750 pcs | 7500 pcs | |||
$0.455 | $0.439 | $0.417 |
- Product parameter
- Data sheet
Product parameter
Part Number | 3-794625-4 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN HEADR 4POS DL R/A 15AU SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 81642 pcs | Data sheet | 794625 |
Category | Connectors, Interconnects | Voltage Rating | 250V |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | Micro MATE-N-LOK |
Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
Packaging | Tape & Reel (TR) | Overall Contact Length | - |
Other Names | 3-794625-4-ND A131076TR |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Lock |
Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm) |
Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | - | Contact Length - Mating | - |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | General Purpose |
