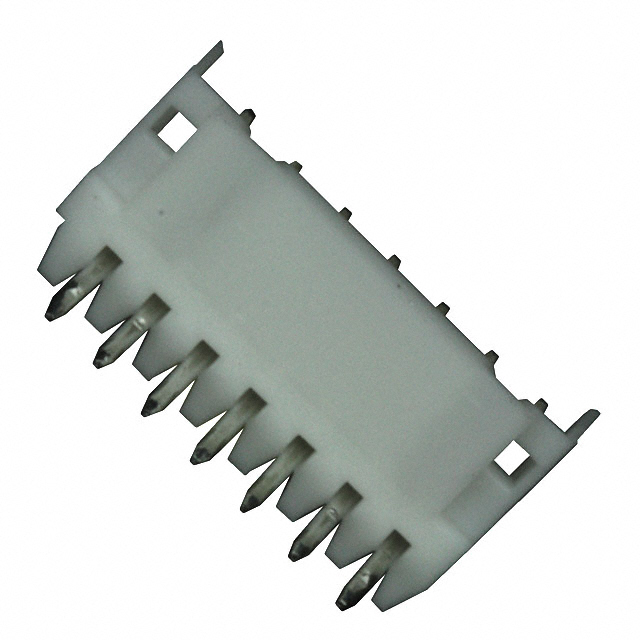

292253-7
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292253-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 292253-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 292253-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 7POS R/A 2MM T/H TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.229 | $0.214 | $0.164 | $0.143 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.118 | $0.104 | $0.096 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 292253-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 7POS R/A 2MM T/H TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 210478 pcs | Data sheet | 292253 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 125VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | CT |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A98579 | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.157" (4.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | 0.177" (4.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
