Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 292228-4

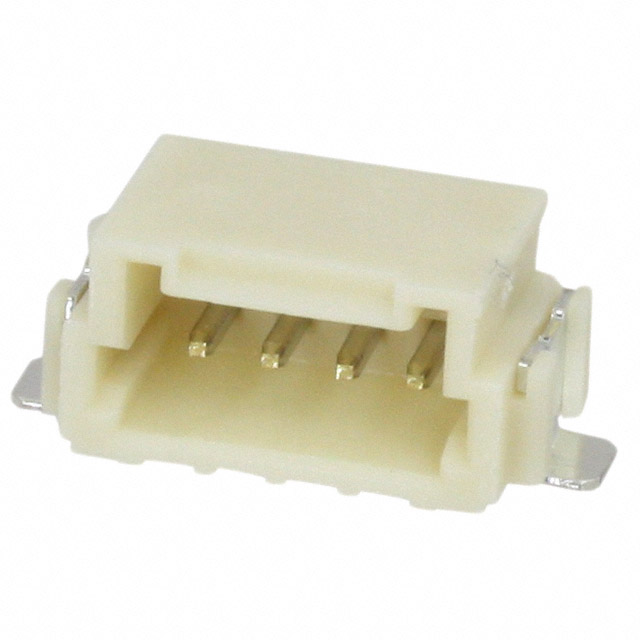

292228-4

292228-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 292228-4 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 292228-4
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 4POS R/A SMD TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 75466 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs
$0.354$0.312$0.269

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.354

Product parameter

Part Number 292228-4 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 4POS R/A SMD TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 75466 pcs Data sheet 292228 Drawing
Category Connectors, Interconnects Voltage Rating 50VAC
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini CT
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Cut Tape (CT) Overall Contact Length -
Other Names 2922284
A101009CT		 Operating Temperature -30°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 4 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 13 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Insulation Height 0.193" (4.90mm) Insulation Color Beige
Ingress Protection - Features Solder Retention
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount, Right Angle 4 position 0.059" (1.50mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post - Contact Length - Mating 0.094" (2.40mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
