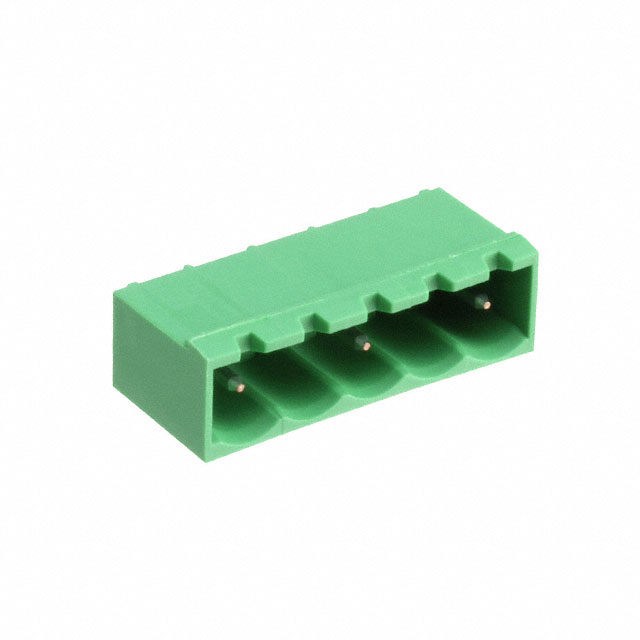

282828-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 282828-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 282828-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 282828-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK HDR 3POS VERT 10.16MM |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.627 | $0.44 | $0.411 | $0.373 | $0.371 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.313 | $0.297 | $0.264 | $0.214 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 282828-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS VERT 10.16MM | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 109053 pcs | Data sheet | 282828-2 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 600V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | Buchanan | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.400" (10.16mm) | Packaging | Bulk |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Height | 0.329" (8.36mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | Vertical |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.400" (10.16mm) Vertical Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
