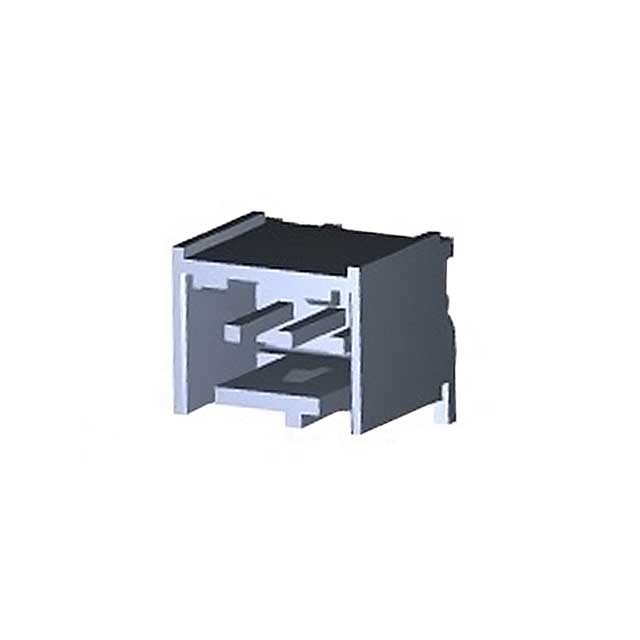

2-647134-3
![2-647134-3](/thumb/medium/98/2-647134-3.jpg)
![](/upfile/linecard/medium_Agastat-Relays-TE-Connectivity.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2-647134-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2-647134-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 2-647134-3 |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | CONN HEADER 3POS R/A .156 GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 500 pcs | ||||
---|---|---|---|---|---|
$0.638 |
- Product parameter
- Data sheet
Product parameter
Part Number | 2-647134-3 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN HEADER 3POS R/A .156 GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 48681 pcs | Data sheet | 647134 |
Category | Connectors, Interconnects | Voltage Rating | 600VAC |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | MTA-156 |
Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
Packaging | Bulk | Overall Contact Length | - |
Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 3 |
Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
Insulation Height | 0.455" (11.56mm) | Insulation Color | Black |
Ingress Protection | - | Features | - |
Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm) |
Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Copper Alloy |
Contact Length - Post | 0.125" (3.18mm) | Contact Length - Mating | 0.300" (7.62mm) |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | General Purpose, Industrial |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
