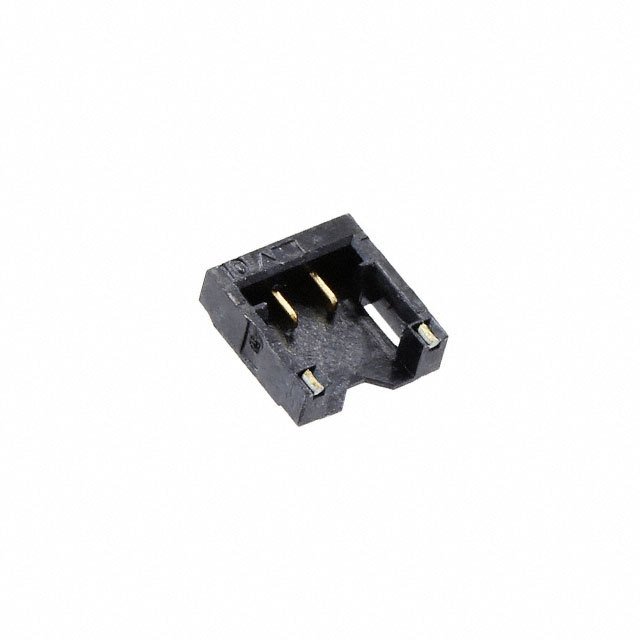

1909782-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1909782-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1909782-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1909782-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | BOARD TO WIRE WAFER 1.2MM TOP EN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 28000 pcs | ||||
|---|---|---|---|---|---|
| $0.109 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1909782-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | BOARD TO WIRE WAFER 1.2MM TOP EN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 191194 pcs | Data sheet | 1909782 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | High Performance Interconnect (HPI) |
| Row Spacing - Mating | - | Pitch - Mating | 0.047" (1.20mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | A118078TR | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.055" (1.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Surface Mount, Right Angle 2 position 0.047" (1.20mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Medical |
