1546306-5

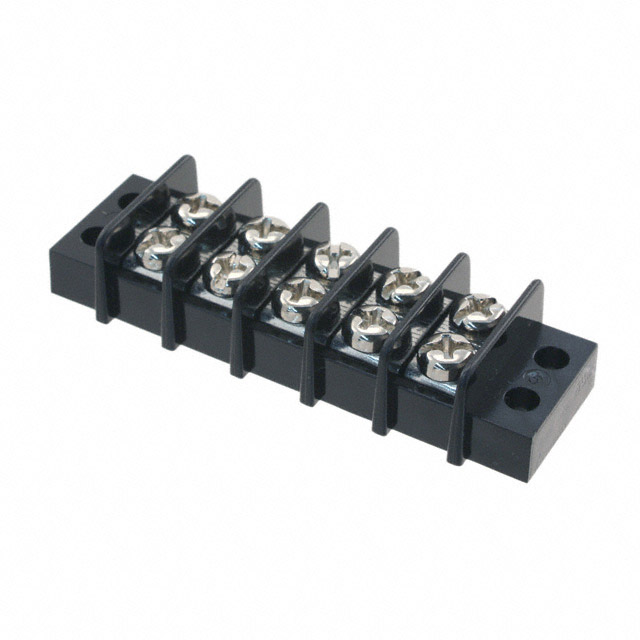

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1546306-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1546306-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1546306-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN BARRIER STRIP 5CIRC 0.374" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.125 | $0.852 | $0.79 | $0.71 | $0.693 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.606 | $0.554 | $0.502 | $0.442 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1546306-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN BARRIER STRIP 5CIRC 0.374" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69798 pcs | Data sheet | 1546306 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 12-22 AWG |
| Voltage Rating | 300V | Top Termination | Screws |
| Terminal Screw Material | Steel | Terminal Screw Finish | Nickel |
| Terminal Block Type | Barrier Block | Series | Buchanan |
| Pitch | 0.374" (9.50mm) | Packaging | Bulk |
| Other Names | 1546306-5-ND 15463065 A98506 |
Operating Temperature | -40°C ~ 120°C |
| Number of Wire Entries | 10 | Number of Rows | 2 |
| Number of Circuits | 5 | Mounting Type | Chassis, Panel |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Thermoplastic | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flange |
| Detailed Description | 5 Circuit 0.374" (9.50mm) Barrier Block Connector, Screws | Current Rating | 20A |
| Color | Black | Bottom Termination | Closed |
| Barrier Type | 2 Wall (Dual) |
