130517

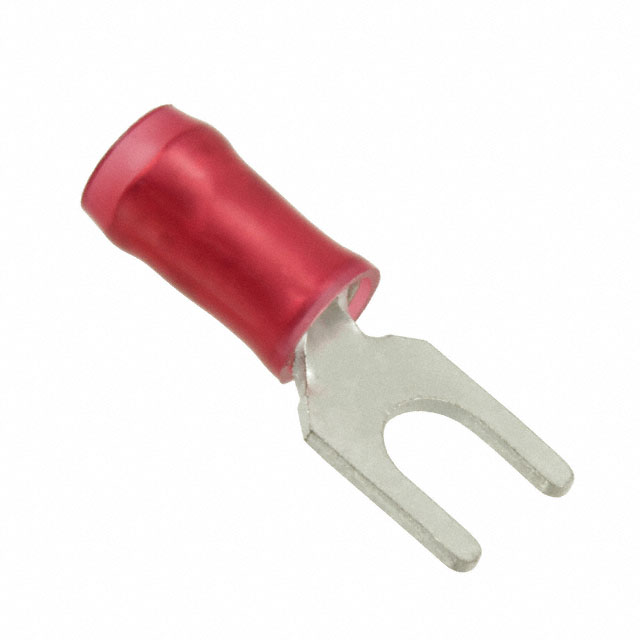

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 130517 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 130517 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 130517 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN SPADE TERM 16-22AWG M4 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.138 | $0.129 | $0.11 | $0.094 | $0.09 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.081 | $0.077 | $0.064 | $0.059 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 130517 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SPADE TERM 16-22AWG M4 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 385961 pcs | Data sheet | 130517 |
| Category | Connectors, Interconnects | Wire Gauge | 16-22 AWG |
| Width - Outer Edges | 0.280" (7.11mm) | Tongue Inside Opening | 0.169" (4.30mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | M4 Stud | Series | PIDG |
| Packaging | Bulk | Other Names | 130517-ND A122526 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 10 Weeks |
| Length - Termination | 0.406" (10.31mm) | Length - Ring Center to Termination | 0.248" (6.30mm) |
| Length - Overall | 0.819" (20.80mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.106" ~ 0.142" (2.69mm ~ 3.61mm) | Insulation | Insulated |
| Features | - | Detailed Description | Red M4 Stud Spade Terminal Connector Crimp 16-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
