104550-5

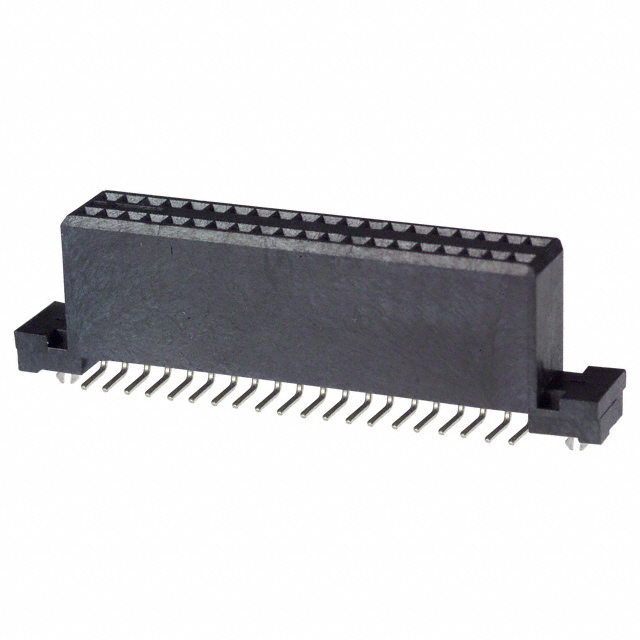

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 104550-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 104550-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 104550-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 40POS .050 DUAL SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1008 pcs | ||||
|---|---|---|---|---|---|
| $1.934 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 104550-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 40POS .050 DUAL SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 17619 pcs | Data sheet | 104550 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board |
| Series | AMPMODU System 50 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | A3255 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.94mm, 13.08mm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyphthalamide (PPA) |
| Insulation Height | 0.370" (9.40mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
