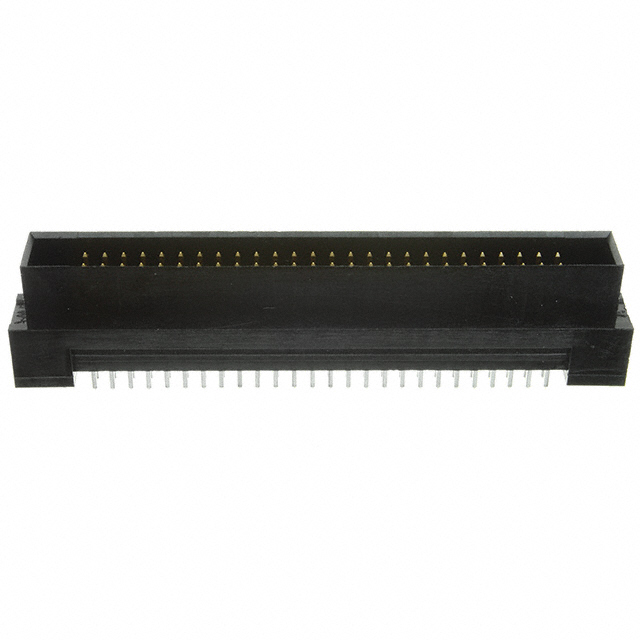

102871-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 102871-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 102871-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 102871-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 52POS STR .100 GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 24 pcs | ||||
|---|---|---|---|---|---|
| $7.779 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 102871-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 52POS STR .100 GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4907 pcs | Data sheet | 102871 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.810" (20.57mm) |
| Other Names | A26918 | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 52 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.785" (19.94mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 52 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.085" (2.16mm) | Contact Length - Mating | 0.275" (6.99mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
