1-532956-8

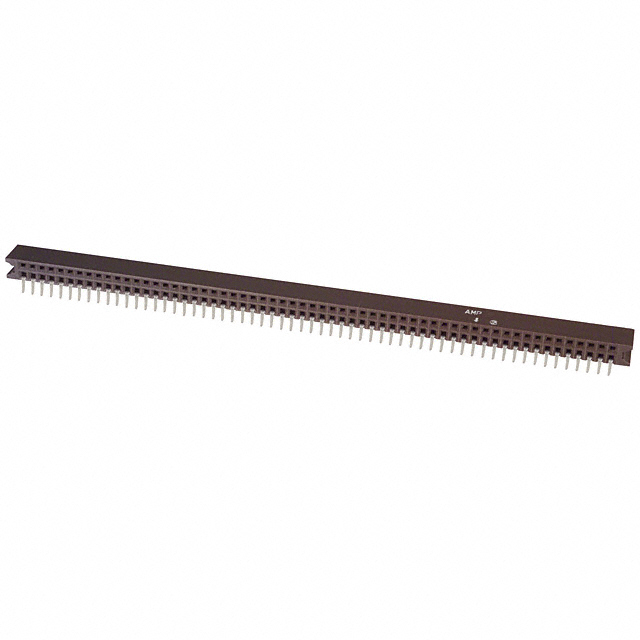

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-532956-8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-532956-8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 1-532956-8 |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | CONN RECPT 120POS .100 RT/A DUAL |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Reference Price (In US Dollars) | 270 pcs | ||||
---|---|---|---|---|---|
$7.034 |
- Product parameter
- Data sheet
Product parameter
Part Number | 1-532956-8 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | CONN RECPT 120POS .100 RT/A DUAL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
Quantity Available | 4753 pcs | Data sheet | 532956 |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board |
Series | AMPMODU Mod II | Row Spacing - Mating | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
Other Names | 1-532956-8-ND A26373 |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 120 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
Insulation Height | 0.238" (6.05mm) | Insulation Color | Black |
Ingress Protection | - | Features | Guide Pin Ears |
Fastening Type | Push-Pull | Detailed Description | 120 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
Current Rating | - | Contact Type | Female Socket |
Contact Shape | Square | Contact Material | Phosphor Bronze |
Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | - |
