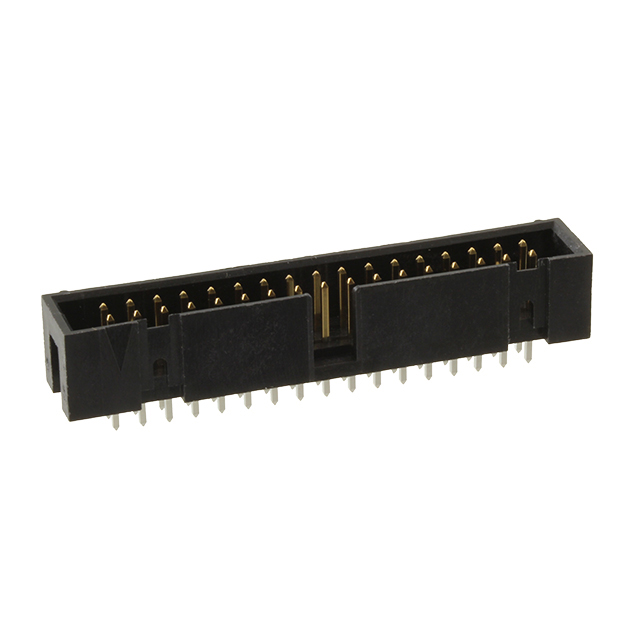

1-1761681-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1761681-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1761681-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1761681-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 34POS VERT IDC GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.033 | $0.993 | $0.91 | $0.869 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.828 | $0.724 | $0.703 | $0.621 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1761681-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 34POS VERT IDC GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61381 pcs | Data sheet | 1761681 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMP-Latch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1-1761681-1-ND A122714 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 34 position 0.100" (2.54mm) |
| Current Rating | 1A per Contact | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.240" (6.10mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
