1-1393546-7

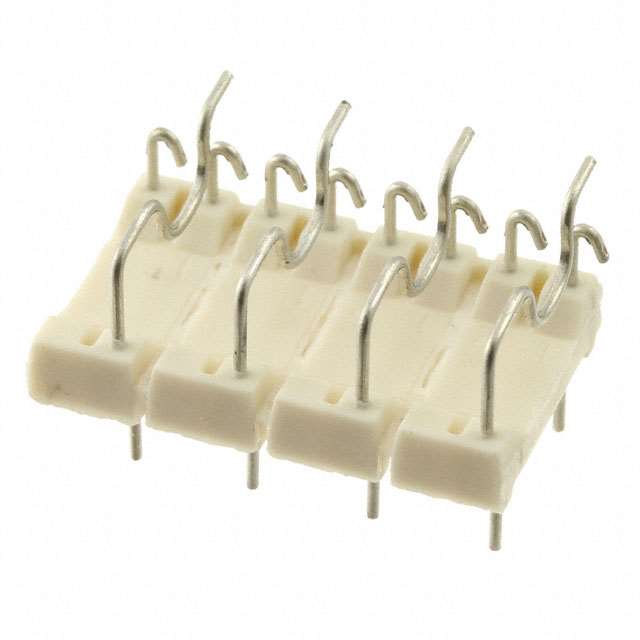

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1393546-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1393546-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 1-1393546-7 |
---|---|
Manufacturer | Agastat Relays / TE Connectivity |
Description | SWITCH DIP SPDT 4 POS |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | Get a quote |
- Product parameter
- Data sheet
Product parameter
Part Number | 1-1393546-7 | Manufacturer | Agastat Relays / TE Connectivity |
---|---|---|---|
Description | SWITCH DIP SPDT 4 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 4146 pcs | Data sheet | 1393546 Series Drawing |
Category | Switches | Washable | No |
Voltage Rating | - | Termination Style | PC Pin |
Series | DIP-FIX | Pitch | 0.100" (2.54mm), Full |
Packaging | Bulk | Other Names | A117116 C42315A1347A204 |
Operating Temperature | - | Number of Positions | 4 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Mechanical Life | - | Length | 0.800" (20.32mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.319" (8.10mm) |
Features | - | Electrical Life | - |
Detailed Description | Dip Switch SPDT 4 Position Through Hole | Current Rating | - |
Contact Material | - | Contact Finish | - |
Circuit | SPDT | Body Material | - |
Actuator Type | - | Actuator Level | Raised |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
