87332-4020

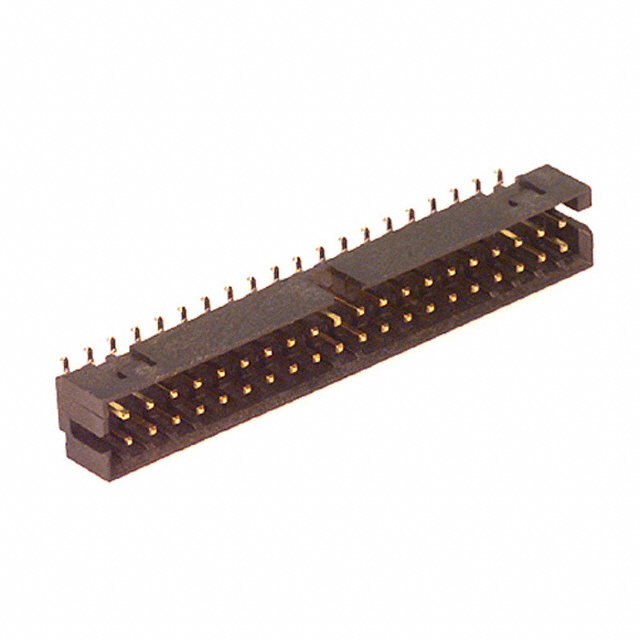

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87332-4020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87332-4020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87332-4020 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 40POS 2MM VERT SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87332-4020 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 40POS 2MM VERT SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4862 pcs | Data sheet | 87332-4020 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Milli-Grid 87332 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 087332-4020 087332-4020-E 0873324020 0873324020-E 873-32-4020-P 87332-4020-E 87332-4020-TB12 873324020 873324020-E WM18085 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.252" (6.40mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Keying Slot | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Surface Mount 40 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.141" (3.60mm) | Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | Automotive, General Purpose, Telecommunications |
