5013310407

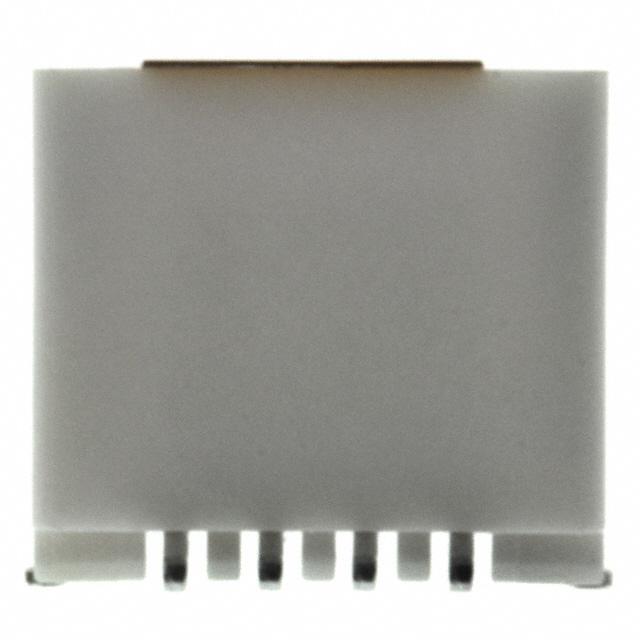

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5013310407 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5013310407 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5013310407 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HEADER 1MM 4POS SMD TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.197 | $0.184 | $0.141 | $0.122 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5013310407 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 1MM 4POS SMD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 164869 pcs | Data sheet | 501331-0407 DrawingPico-Clasp™ Connector Brochure |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Pico-Clasp 501331 |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | WM7881CT | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Insulation Height | 0.213" (5.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Pick and Place, Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Surface Mount 4 position 0.039" (1.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 40.0µin (1.02µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose |
