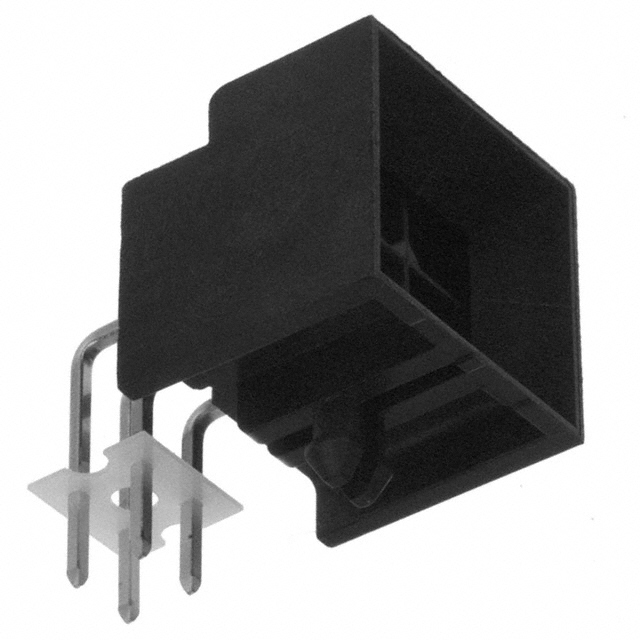

44428-0402
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 44428-0402 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 44428-0402 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 44428-0402 |
---|---|
Manufacturer | Affinity Medical Technologies - a Molex company |
Description | CONN HEADER 4POS 3MM R/A GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
---|---|---|---|---|---|
$0.627 | $0.57 | $0.489 | $0.407 | ||
1000 pcs | 5000 pcs | 10000 pcs | |||
$0.349 | $0.309 | $0.303 |
- Product parameter
- Data sheet
Product parameter
Part Number | 44428-0402 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | CONN HEADER 4POS 3MM R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 78524 pcs | Data sheet | 44428-xx0xMicro-Fit BMI Spec |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Board or Cable |
Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 BMI 44428 |
Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
Packaging | Tray | Overall Contact Length | - |
Other Names | 0444280402 44428-0402-TR150 444280402 WM2027 |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 4 | Mounting Type | Through Hole, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
Insulation Height | 0.469" (11.90mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Lock |
Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
