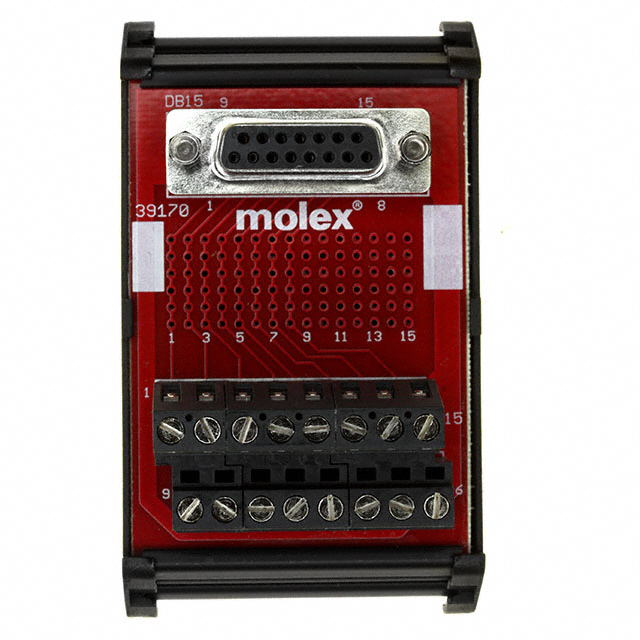

39170-3015
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 39170-3015 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 39170-3015 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 39170-3015 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | INTERFACE MOD DSUB FMALE 15POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 39170-3015 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | INTERFACE MOD DSUB FMALE 15POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5948 pcs | Data sheet | 39170-30xx |
| Category | Connectors, Interconnects | Wire Gauge | 12-26 AWG |
| Width | 3.640" (92.45mm) | Voltage - Rated | 300V |
| Series | Eurostyle 39170 | Process Side Connection | Terminal Blocks - Screw Connection |
| Positions / Poles | 15 | Other Names | 039170-3015 039170-3015-E 0391703015 0391703015-E 39170-3015-E 391703015 391703015-E WM5456 |
| Operating Temperature | 110°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length | 2.142" (54.40mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Component Area | Detailed Description | 15 Position Interface Module Terminal Blocks - Screw Connection To D-Sub, Female 12-26 AWG |
| Current Rating (Per Contact) | 15A | Control Side Connection | D-Sub, Female |
| Control Side Cable Retainer | Jackscrew Socket |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
