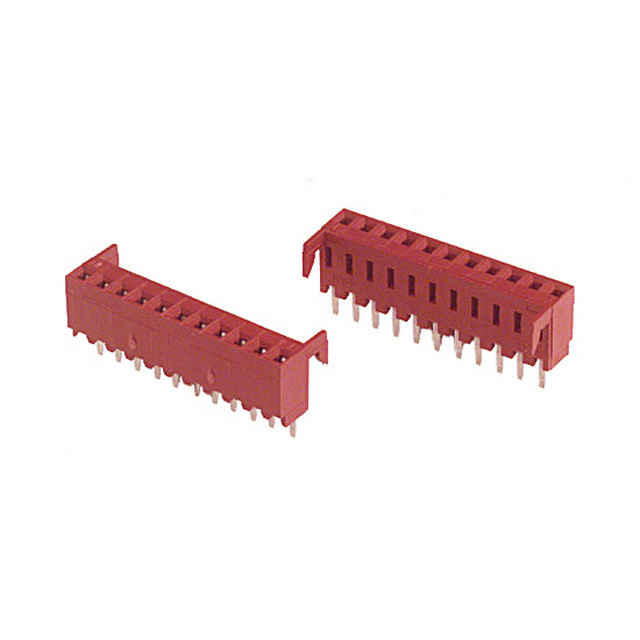

22-18-2111
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 22-18-2111 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 22-18-2111 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 22-18-2111 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN RECEPT 11POS .100 VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1782 pcs | ||||
|---|---|---|---|---|---|
| $0.266 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 22-18-2111 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN RECEPT 11POS .100 VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72158 pcs | Data sheet | 10-07 Prod Spec22-18-2111 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Series | KK 4455 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 0022-18-2111 0022-18-2111-E 0022182111 0022182111-E 22-18-2111-E 22-18-2111-P 22182111 22182111-E A-4455-CZ11A(208) WM3242 |
Operating Temperature | -40°C ~ 80°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.311" (7.90mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Hooks |
| Fastening Type | Push-Pull | Detailed Description | 11 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2.5A | Contact Type | Non-Gendered |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.132" (3.35mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
