1722862206

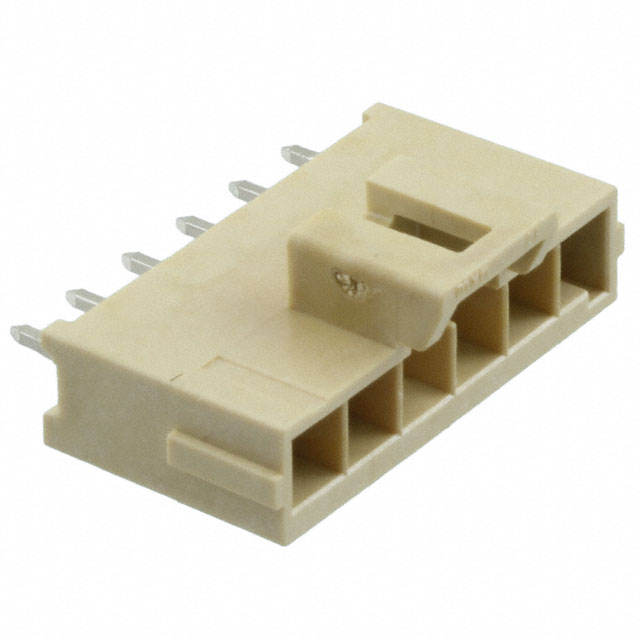

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1722862206 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1722862206 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1722862206 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | ULTRAFIT VERT 15 AU PLATED NAT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.642 | $0.584 | $0.50 | $0.417 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.357 | $0.317 | $0.31 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1722862206 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | ULTRAFIT VERT 15 AU PLATED NAT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75517 pcs | Data sheet | 1722862206 DrawingUltra-Fit™ Power Connectors Brochure |
| Category | Connectors, Interconnects | Voltage Rating | 400V |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Ultra-Fit 172286 |
| Row Spacing - Mating | - | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | WM11691 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 26.99mm | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.465" (11.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 6 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
