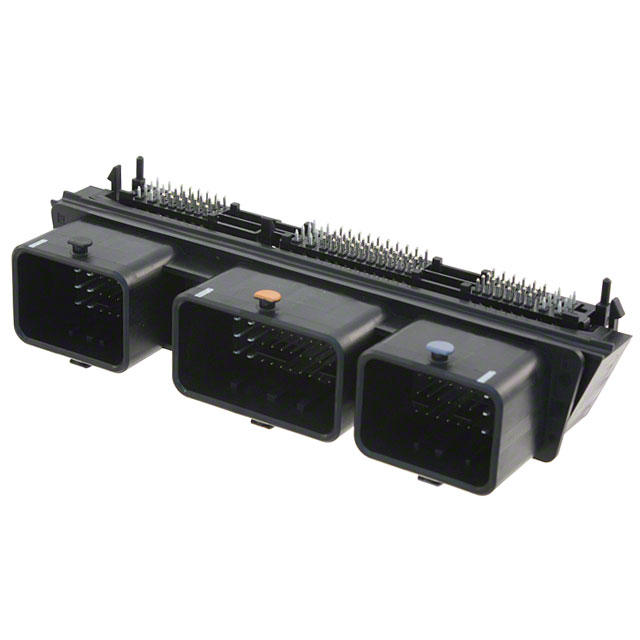

0643330100
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0643330100 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0643330100 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0643330100 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | CONN HDR 112POS R/A 3-POCKET CMC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 48 pcs | 144 pcs | 528 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $4.654 | $4.125 | $3.596 | $3.067 | $2.813 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 0643330100 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HDR 112POS R/A 3-POCKET CMC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13491 pcs | Data sheet | 0643330100 Appl SpecCMC Headers Prd Ref Guide0643330100 Pkg SpecCMC Connector System BrochureCMC Hybrid Conn Datasheet0643330100 DrawingCMC Part Numb Guide |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | CMC 64333 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 064333-0100 64333-0100 643330100 WM4529 |
Operating Temperature | - |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 112 (32 + 48 + 32) | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.980" (24.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock, Mounting Flange |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Board Edge, Through Hole, Right Angle 112 (32 + 48 + 32) position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | - | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
