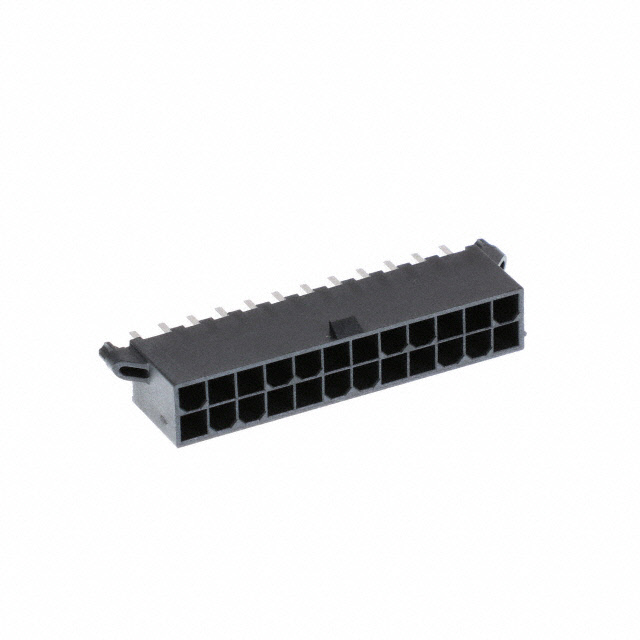

0462070224
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0462070224 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0462070224 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0462070224 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI-FIT JR LCP VERT. HDR PEGS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.257 | $2.162 | $1.974 | $1.88 | ||
| 100 pcs | 250 pcs | 500 pcs | 1200 pcs | ||
| $1.786 | $1.598 | $1.504 | $1.316 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0462070224 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI-FIT JR LCP VERT. HDR PEGS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23220 pcs | Data sheet | 0462070224 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini-Fit Jr 46207 |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0462-07-0224 046207-0224 0462070224-ND 46207-0224 462070224 WM20240 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Insulation Height | 0.535" (13.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 24 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.207" (5.26mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Telecommunications |
