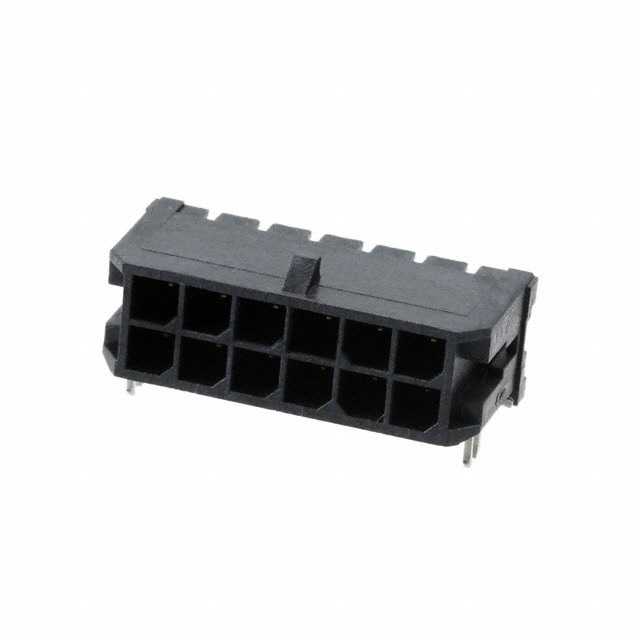

0430451207
![0430451207](/thumb/medium/80/0430451207.jpg)
![](/upfile/linecard/medium_Affinity-Medical-Technologies-a-Molex-company.jpg)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0430451207 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0430451207 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | 0430451207 |
---|---|
Manufacturer | Affinity Medical Technologies - a Molex company |
Description | MICROFIT 3.0 RA SMT/CLIP DR 15AU |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 200 pcs | 400 pcs | 600 pcs | 1000 pcs | 2000 pcs |
---|---|---|---|---|---|
$1.386 | $1.213 | $1.178 | $1.005 | $0.97 |
- Product parameter
- Data sheet
Product parameter
Part Number | 0430451207 | Manufacturer | Affinity Medical Technologies - a Molex company |
---|---|---|---|
Description | MICROFIT 3.0 RA SMT/CLIP DR 15AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 33418 pcs | Data sheet | 0430451207 DrawingMicro-Fit 3.0™ Datasheet43045 Prod Spec |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | Micro-Fit 3.0 43045 |
Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
Packaging | Tape & Reel (TR) | Overall Contact Length | - |
Other Names | 0430-45-1207 043045-1207 0430451207-ND 43045-1207 430451207 WM10737TR |
Operating Temperature | - |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 12 | Mounting Type | Surface Mount, Right Angle |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
Insulation Height | 0.290" (7.37mm) | Insulation Color | Black |
Ingress Protection | - | Features | Board Lock |
Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 12 position 0.118" (3.00mm) |
Current Rating | - | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | - | Contact Length - Mating | - |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | General Purpose, Medical, Military, Telecommunications |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
