0348250124

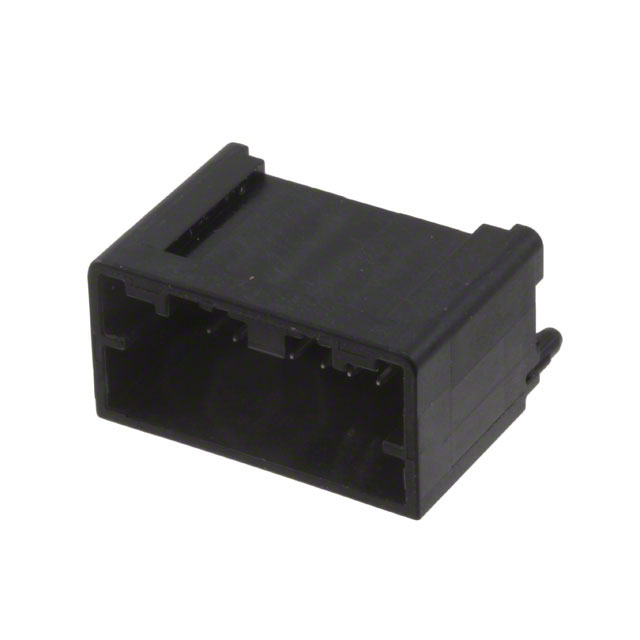

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 0348250124 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 0348250124 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 0348250124 |
|---|---|
| Manufacturer | Affinity Medical Technologies - a Molex company |
| Description | MINI50 VHDR 12CKT BLK POL A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 520 pcs | |
|---|---|---|---|---|---|
| $0.544 | $0.495 | $0.424 | $0.354 | ||
| 1040 pcs | 5200 pcs | 10400 pcs | |||
| $0.303 | $0.269 | $0.263 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 0348250124 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | MINI50 VHDR 12CKT BLK POL A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72662 pcs | Data sheet | Mini50™Connector System Brochure34825 Series Drawing34791-93, 34824-26 Appl Spec |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Mini50 34825 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 0348250-0124 34825-0124 348250-0124 348250124 WM10326 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Insulation Height | 0.614" (15.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 12 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.113" (2.87mm) | Contact Length - Mating | 0.218" (5.55mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
