JANTXV2N6287

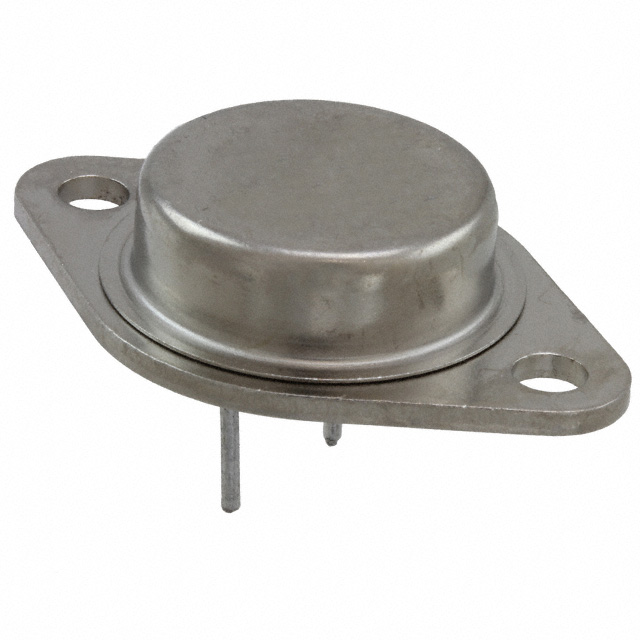

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JANTXV2N6287 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JANTXV2N6287 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JANTXV2N6287 |
|---|---|
| Manufacturer | Aeroflex (MACOM Technology Solutions) |
| Description | DIODE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $34.558 | $32.397 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JANTXV2N6287 | Manufacturer | Aeroflex (MACOM Technology Solutions) |
|---|---|---|---|
| Description | DIODE | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1151 pcs | Data sheet | 2N6286, 2N6287~ |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 100V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 40mA, 10A | Transistor Type | PNP - Darlington |
| Supplier Device Package | TO-3 (TO-204AA) | Series | Military, MIL-PRF-19500/505 |
| Power - Max | 175W | Packaging | Bulk |
| Package / Case | TO-204AA, TO-3 | Other Names | 1657-1230 1657-1230-MIL |
| Operating Temperature | -65°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | - | Detailed Description | Bipolar (BJT) Transistor PNP - Darlington 100V 20A 175W Through Hole TO-3 (TO-204AA) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 6A, 3V | Current - Collector Cutoff (Max) | 1mA |
| Current - Collector (Ic) (Max) | 20A |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
