ATS-10B-20-C2-R0

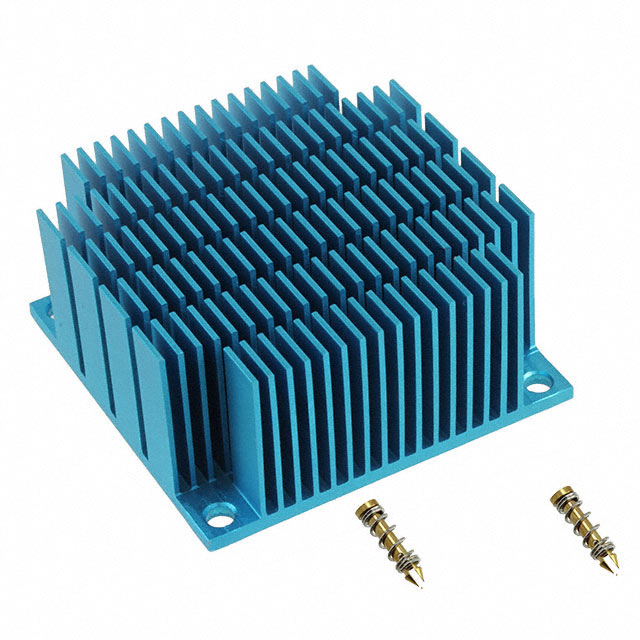

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-10B-20-C2-R0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-10B-20-C2-R0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-10B-20-C2-R0 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK 54X54X25MM XCUT T766 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.555 | $2.486 | $2.348 | $2.21 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.071 | $1.933 | $1.795 | $1.761 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-10B-20-C2-R0 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK 54X54X25MM XCUT T766 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21533 pcs | Data sheet | ATS-10B-20-C2-R0 |
| Category | Fans, Thermal Management | Width | 2.126" (54.00mm) |
| Type | Top Mount | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 7.14°C/W @ 100 LFM | Shape | Square, Fins |
| Series | pushPIN™ | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Assorted (BGA, LGA, CPU, ASIC...) | Other Names | ATS-10B-20-C2-R0-ND ATS17214 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Blue Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 6 Weeks |
| Length | 2.126" (54.01mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.984" (25.00mm) | Diameter | - |
| Detailed Description | Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount | Attachment Method | Push Pin |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
