ATS-06F-136-C1-R0

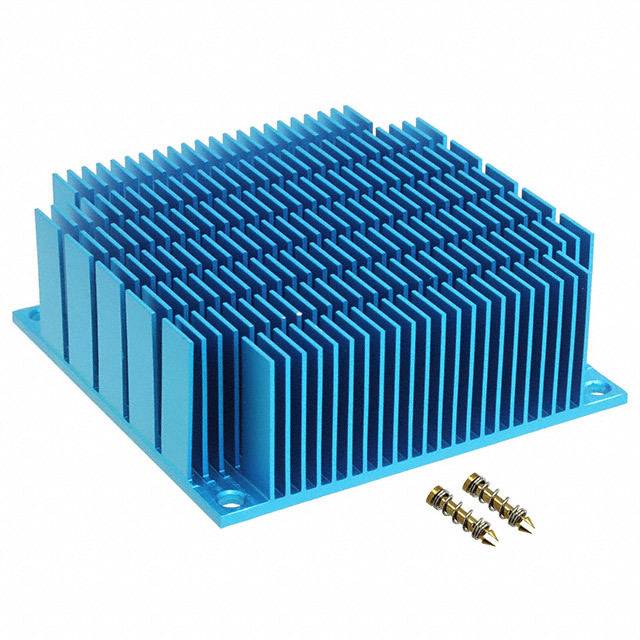

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ATS-06F-136-C1-R0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ATS-06F-136-C1-R0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ATS-06F-136-C1-R0 |
|---|---|
| Manufacturer | Advanced Thermal Solutions, Inc. |
| Description | HEATSINK 70X70X25MM XCUT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 30 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $3.251 | $3.071 | $2.89 | $2.71 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $2.529 | $2.348 | $2.303 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | ATS-06F-136-C1-R0 | Manufacturer | Advanced Thermal Solutions, Inc. |
|---|---|---|---|
| Description | HEATSINK 70X70X25MM XCUT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15441 pcs | Data sheet | ATS-06F-136-C1-R0 |
| Category | Fans, Thermal Management | Width | 2.756" (70.00mm) |
| Type | Top Mount | Thermal Resistance @ Natural | - |
| Thermal Resistance @ Forced Air Flow | 2.17°C/W @ 100 LFM | Shape | Square, Fins |
| Series | pushPIN™ | Power Dissipation @ Temperature Rise | - |
| Package Cooled | Assorted (BGA, LGA, CPU, ASIC...) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Finish | Blue Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 6 Weeks | Length | 2.756" (70.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.984" (25.00mm) |
| Diameter | - | Detailed Description | Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount |
| Attachment Method | Push Pin |
