324

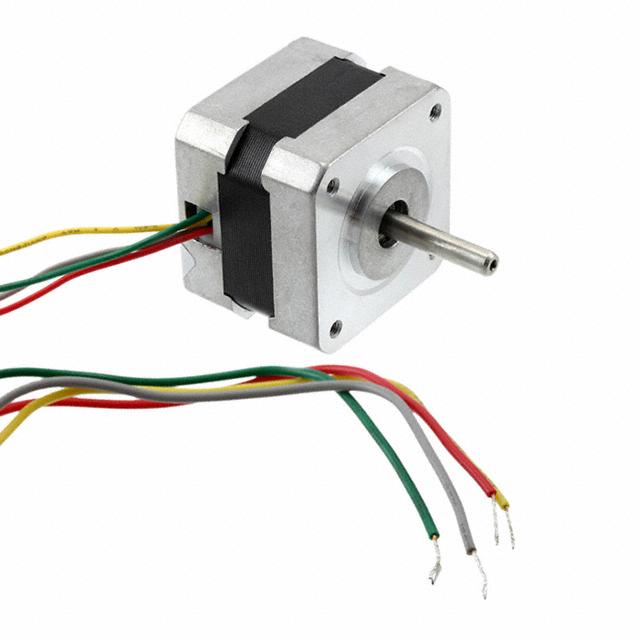

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 324 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 324 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 324 |
|---|---|
| Manufacturer | Adafruit |
| Description | STEPPER MOTOR HYBRID BIPOLAR 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $5.107 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 324 | Manufacturer | Adafruit |
|---|---|---|---|
| Description | STEPPER MOTOR HYBRID BIPOLAR 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7088 pcs | Data sheet | Motor Selection GuideAll About Stepper MotorsMotor Shield V2 for Arduino |
| Category | Motors, Solenoids, Driver Boards/Modules | Weight | 0.441 lb (200.03g) |
| Voltage - Rated | 12VDC | Type | Hybrid |
| Torque - Holding (oz-in / mNm) | 28 / 197 | Termination Style | Wire Leads |
| Steps per Revolution | 200 | Step Angle | 1.8° |
| Size / Dimension | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | Series | - |
| Rotor Inertia | 38gcm² | Other Names | 1528-1062 |
| Operating Temperature | 0°C ~ 50°C | NEMA Frame Size | 17 |
| Mounting Hole Spacing | 1.220" (30.99mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Shaft and Bearing | 0.945" (24.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flatted Shaft |
| Diameter - Shaft | 0.197" (5.00mm) | Detailed Description | Bipolar Stepper Motor 200 Step 0.35A 12VDC |
| Current Rating | 350mA | Coil Type | Bipolar |
| Coil Resistance | 35 Ohms | Approvals | UL |
| Accuracy | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
