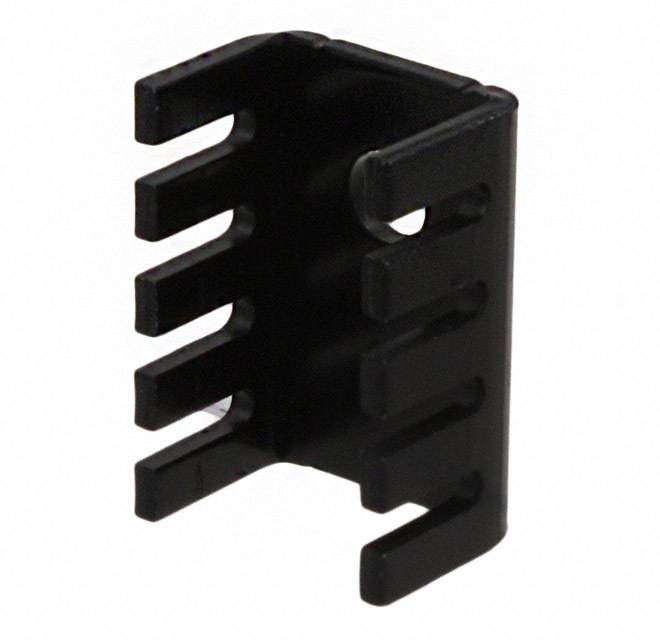

577102B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 577102B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 577102B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 577102B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEAT SINK TO-220 .375" COMPACT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.223 | $0.211 | $0.201 | $0.196 | $0.193 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.18 | $0.169 | $0.153 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 577102B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEAT SINK TO-220 .375" COMPACT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 133880 pcs | Data sheet | 577x02B0x000G, 6084BGStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 0.520" (13.21mm) |
| Type | Board Level | Thermal Resistance @ Natural | 25.90°C/W |
| Thermal Resistance @ Forced Air Flow | 12.00°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 3.0W @ 80°C |
| Package Cooled | TO-220 | Other Names | 002504 577102B00000 5771B 6078B HS106 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Length | 0.750" (19.05mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.375" (9.52mm) |
| Diameter | - | Detailed Description | Heat Sink TO-220 Aluminum 3.0W @ 80°C Board Level |
| Attachment Method | Bolt On |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
