H3WWH-1036M

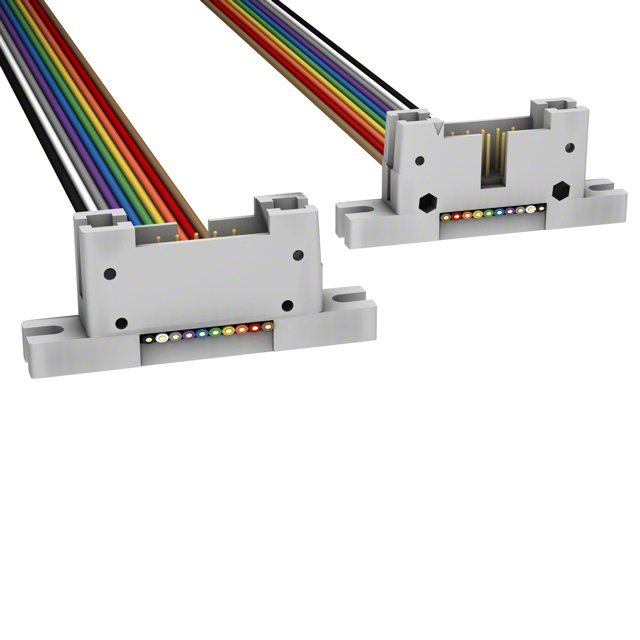

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H3WWH-1036M with confidence from Components-World.HK, 1 Year Warranty
Dowload H3WWH-1036M Details in PDFSee Product Specifications for product details.
Buy H3WWH-1036M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | H3WWH-1036M |
---|---|
Manufacturer | ASSMANN WSW Components |
Description | IDC CBL - HHPL10H/AE10M/HHPL10H |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
---|---|---|---|---|---|
$3.306 | $3.161 | $2.874 | $2.73 | $2.658 | |
250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
$2.371 | $2.227 | $1.969 | $1.868 |
- Product parameter
- Data sheet
Product parameter
Part Number | H3WWH-1036M | Manufacturer | ASSMANN WSW Components |
---|---|---|---|
Description | IDC CBL - HHPL10H/AE10M/HHPL10H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 17887 pcs | Data sheet | AWG28-xx/F/300AWH xxG-E2x2-IDC DrawingRibbon Cable Assembly Length Guide |
Category | Cable Assemblies | Usage | - |
Shielding | Unshielded | Series | - |
Pitch - Connector | 0.100" (2.54mm) | Pitch - Cable | 0.050" (1.27mm) |
Number of Rows | 2 | Number of Positions | 10 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Length | 3.00' (914.40mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Flange, Polarizing Key |
Detailed Description | 10 Position Cable Assembly Rectangular Plug to Plug 3.00' (914.40mm) | Contact Finish Thickness | 15.0µin (0.38µm) |
Contact Finish | Gold | Connector Type | Plug to Plug |
Color | Multiple, Ribbon | Cable Termination | IDC |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
