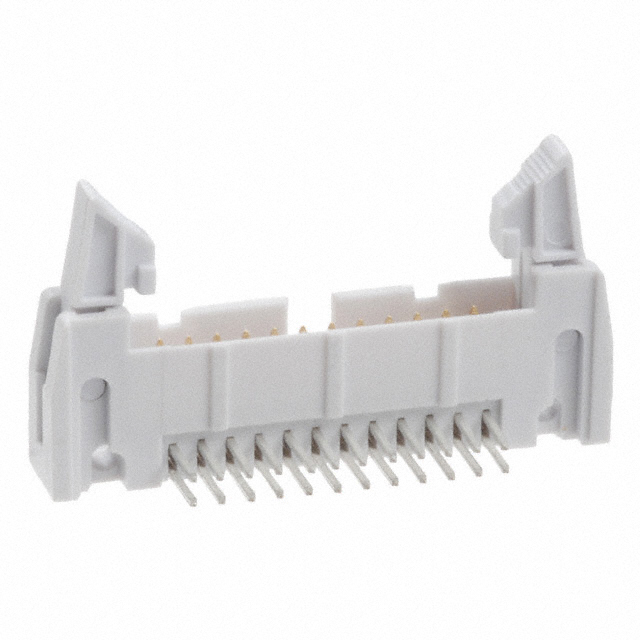

AWH24A-0222-T-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWH24A-0222-T-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWH24A-0222-T-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWH24A-0222-T-R |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN HEADER 24POS R/A SHORT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWH24A-0222-T-R | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN HEADER 24POS R/A SHORT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4054 pcs | Data sheet | AWHxxA-0xx2-T Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | HRS24H | Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.669" (17.00mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Lock/Eject Hooks, Short |
| Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.150" (3.81mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
