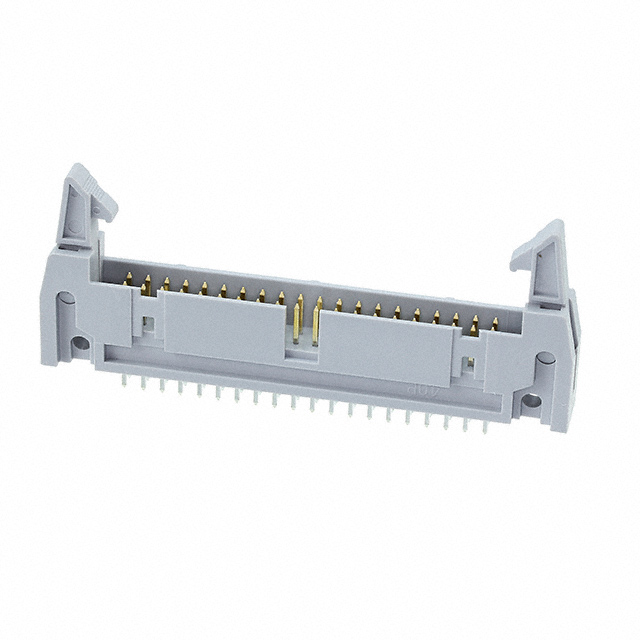

AWH 40G-0232-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWH 40G-0232-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWH 40G-0232-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | AWH 40G-0232-T |
---|---|
Manufacturer | ASSMANN WSW Components |
Description | CONN HEADER 40POS VERT LONG GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 60 pcs | 120 pcs | ||
---|---|---|---|---|---|
$0.832 | $0.679 | $0.648 | |||
540 pcs | 1020 pcs | 5040 pcs | |||
$0.54 | $0.463 | $0.41 |
- Product parameter
- Data sheet
Product parameter
Part Number | AWH 40G-0232-T | Manufacturer | ASSMANN WSW Components |
---|---|---|---|
Description | CONN HEADER 40POS VERT LONG GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 84969 pcs | Data sheet | AWHxxG-02x2-T Drawing |
Category | Connectors, Interconnects | Voltage Rating | - |
Termination | Solder | Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall | Series | - |
Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Tray | Overall Contact Length | - |
Other Names | AE11079 AWH-40G-0232-T AWH40G-0232-T AWH40G-0232-T-ND |
Operating Temperature | -40°C ~ 105°C |
Number of Rows | 2 | Number of Positions Loaded | All |
Number of Positions | 40 | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
Insulation Height | 0.669" (17.00mm) | Insulation Color | Gray |
Ingress Protection | - | Features | Keying Slot |
Fastening Type | Latch Lock/Eject Hooks, Long | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
Current Rating | 3A | Contact Type | Male Pin |
Contact Shape | Square | Contact Material | Brass |
Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | - |
Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
Connector Type | Header | Applications | - |
