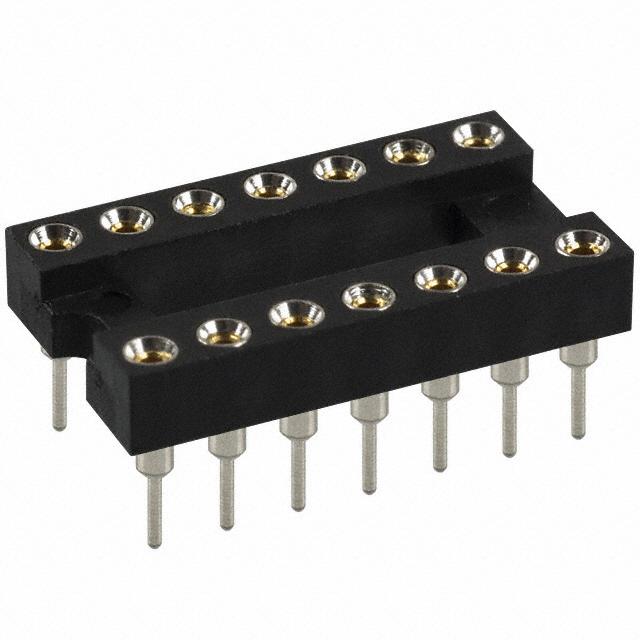

AR 14 HZL/07-TT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AR 14 HZL/07-TT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AR 14 HZL/07-TT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | AR 14 HZL/07-TT |
---|---|
Manufacturer | ASSMANN WSW Components |
Description | CONN IC DIP SOCKET 14POS GOLD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 33 pcs | 66 pcs | 132 pcs |
---|---|---|---|---|---|
$0.894 | $0.812 | $0.762 | $0.729 | $0.696 | |
264 pcs | 528 pcs | 1023 pcs | 2508 pcs | ||
$0.63 | $0.58 | $0.497 | $0.464 |
- Product parameter
- Data sheet
Product parameter
Part Number | AR 14 HZL/07-TT | Manufacturer | ASSMANN WSW Components |
---|---|---|---|
Description | CONN IC DIP SOCKET 14POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 69878 pcs | Data sheet | AR-xxx-x/x Drawing |
Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
Termination Post Length | - | Termination | Solder |
Series | - | Pitch - Post | 0.100" (2.54mm) |
Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
Other Names | AE10035 AR-14-HZL/07-TT AR14-HZL/07-TT-R AR14HZL07TTR |
Operating Temperature | -40°C ~ 105°C |
Number of Positions or Pins (Grid) | 14 (2 x 7) | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Housing Material | Thermoplastic, Polyester | Features | Open Frame |
Current Rating | 3A | Contact Resistance | 4 mOhm |
Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
