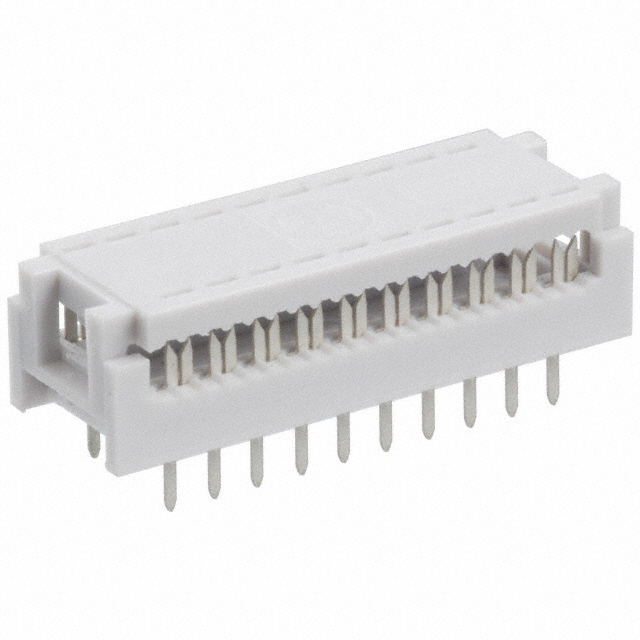

ADIP 20Z-LC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ADIP 20Z-LC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ADIP 20Z-LC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ADIP 20Z-LC |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN DIP IDC 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ADIP 20Z-LC | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN DIP IDC 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5182 pcs | Data sheet | ADIPxx-Z-LC Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Series | - | Row Spacing | 0.300" (7.62mm) |
| Packaging | Tray | Other Names | ADIP20-Z-LC ADIP20-Z-LC-R ADIP20ZLCR HDP20S |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Feed Through | Detailed Description | 20 Position Ribbon Cable, DIP Header Connector Black IDC Through Hole |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Connector Type | Ribbon Cable, DIP Header | Color | Black |
| Cable Termination | IDC | Cable Pitch | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) |
