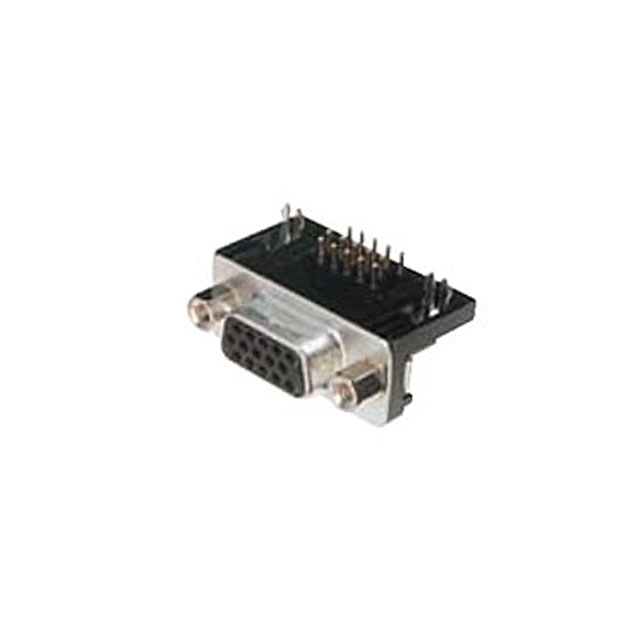

A-HDF 15 A-KG/T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-HDF 15 A-KG/T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-HDF 15 A-KG/T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-HDF 15 A-KG/T |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN DSUB HD RCPT 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 90 pcs | ||||
|---|---|---|---|---|---|
| $0.318 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-HDF 15 A-KG/T | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN DSUB HD RCPT 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73145 pcs | Data sheet | A-HDzzzA-KG/T Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | A-HDF 15 A-KG/T-ND A-HDF-15-A-KG/T A-HDF-15-A-KG/T-ND A-HDF15A-KG/T AHDF15A-KG-TASB-R AHDF15A-KG-TASB-R-ND |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | Board Lock | Detailed Description | 15 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | 0.350" (8.89mm) |
