5022R-102G

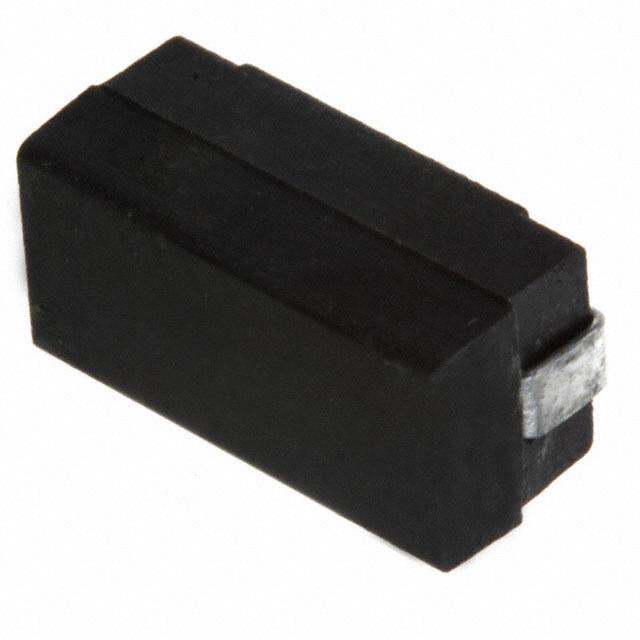

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5022R-102G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5022R-102G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5022R-102G |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 1UH 1.125A 290 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 800 pcs | ||||
|---|---|---|---|---|---|
| $1.341 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5022R-102G | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 1UH 1.125A 290 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29127 pcs | Data sheet | 5022(R) Series |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±2% | Supplier Device Package | - |
| Size / Dimension | 0.520" L x 0.250" W (13.21mm x 6.35mm) | Shielding | Unshielded |
| Series | 5022R | Ratings | - |
| Q @ Freq | 50 @ 25MHz | Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD | Other Names | 5022R-102G 800 TR |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Phenolic |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 25MHz | Inductance | 1µH |
| Height - Seated (Max) | 0.230" (5.84mm) | Frequency - Self Resonant | 200MHz |
| Detailed Description | 1µH Unshielded Inductor 1.125A 290 mOhm Max 2-SMD | DC Resistance (DCR) | 290 mOhm Max |
| Current Rating | 1.125A | Current - Saturation | - |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
