NSS12100UW3TCG

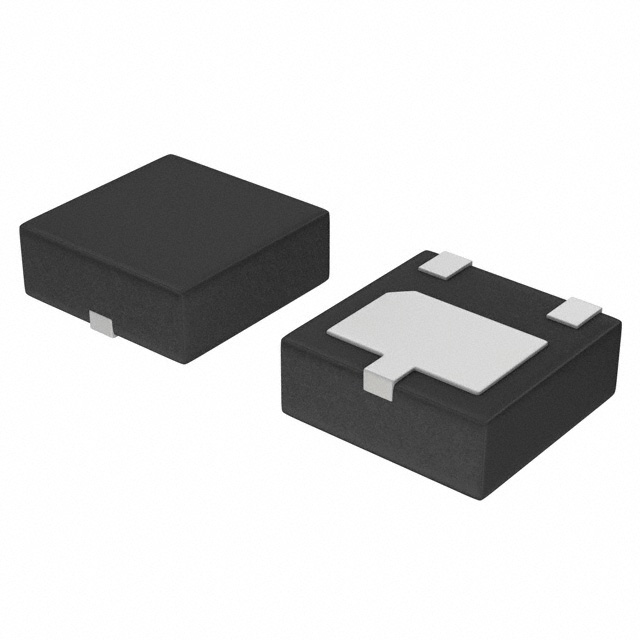

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NSS12100UW3TCG with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NSS12100UW3TCG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NSS12100UW3TCG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | TRANS PNP 12V 1A WDFN3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.072 | $0.067 | $0.063 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NSS12100UW3TCG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | TRANS PNP 12V 1A WDFN3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 301647 pcs | Data sheet | NSS12100UW3TCG |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 12V |
| Vce Saturation (Max) @ Ib, Ic | 440mV @ 100mA, 1A | Transistor Type | PNP |
| Supplier Device Package | 3-WDFN (2x2) | Series | - |
| Power - Max | 740mW | Packaging | Tape & Reel (TR) |
| Package / Case | 3-WDFN Exposed Pad | Other Names | NSS12100UW3TCG-ND NSS12100UW3TCGOSTR |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Transition | 200MHz |
| Detailed Description | Bipolar (BJT) Transistor PNP 12V 1A 200MHz 740mW Surface Mount 3-WDFN (2x2) | DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 500mA, 2V |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | Current - Collector (Ic) (Max) | 1A |
| Base Part Number | NSS12100 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
