NLAS4685FCT1

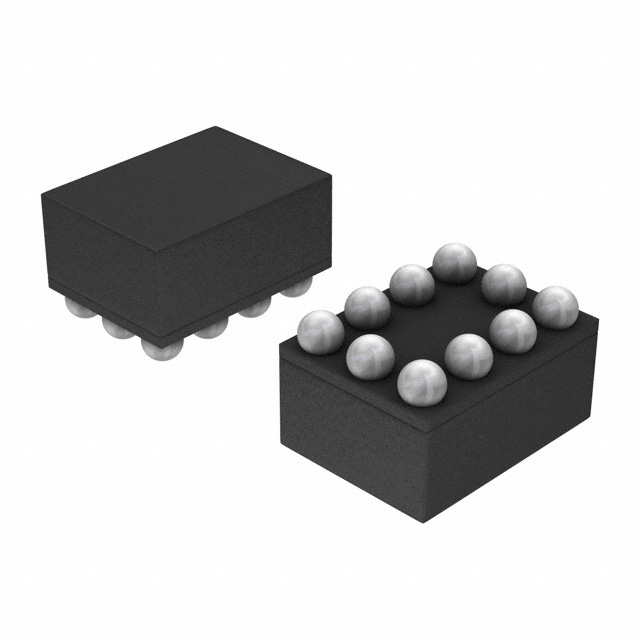

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NLAS4685FCT1 with confidence from Components-World.HK, 1 Year Warranty
Dowload NLAS4685FCT1 Details in PDFSee Product Specifications for product details.
Buy NLAS4685FCT1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NLAS4685FCT1 |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC SWITCH DUAL SPDT 10MICROBUMP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NLAS4685FCT1 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC SWITCH DUAL SPDT 10MICROBUMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5868 pcs | Data sheet | NLAS4685 |
| Category | Integrated Circuits (ICs) | Voltage - Supply, Single (V+) | 1.8 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 30ns, 25ns |
| Switch Circuit | SPDT | Supplier Device Package | 10-Microbump (1.97x1.47) |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFBGA, FCBGA | Operating Temperature | -55°C ~ 125°C (TA) |
| On-State Resistance (Max) | 800 mOhm | Number of Circuits | 2 |
| Multiplexer/Demultiplexer Circuit | 2:1 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Detailed Description | 2 Circuit IC Switch 2:1 800 mOhm 10-Microbump (1.97x1.47) |
| Current - Leakage (IS(off)) (Max) | 1µA | Crosstalk | -81dB @ 100kHz |
| Charge Injection | 20pC | Channel-to-Channel Matching (ΔRon) | 60 mOhm |
| Channel Capacitance (CS(off), CD(off)) | 208pF, 102pF | Base Part Number | NLAS4685 |
| -3db Bandwidth | 11.5MHz |
