Home > Products > Development Boards, Kits, Programmers > Evaluation and Demonstration Boards and Kits > NCS2553DGEVB

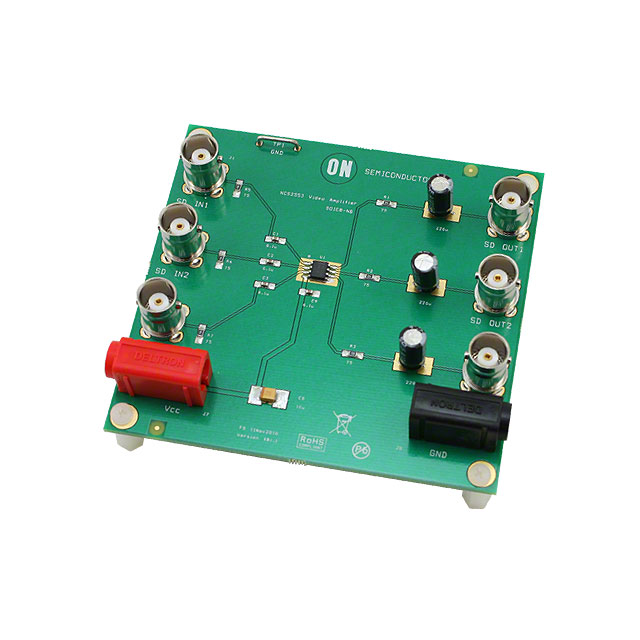

NCS2553DGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCS2553DGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCS2553DGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVALUATION NCS2553D
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1132 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$34.319

Product parameter
Data sheet

Product parameter

Part Number	NCS2553DGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVALUATION NCS2553D	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1132 pcs	Data sheet	NCS2553
Category	Development Boards, Kits, Programmers	Utilized IC / Part	NCS2553
Type	Video	Supplied Contents	Board(s)
Series	-	Secondary Attributes	AC- or DC-Coupled Inputs and Outputs
Primary Attributes	Gain 6dB, Reconstruction Filters	Other Names	NCS2553DGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Function	Amplifier, Triple	Embedded	No
Detailed Description	NCS2553 Amplifier, Triple Video Evaluation Board

This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
