NCP59800BMNADJTBG

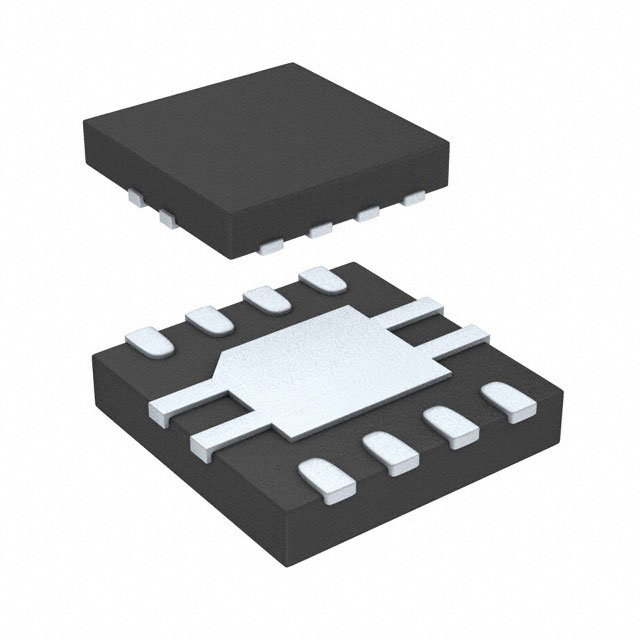

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP59800BMNADJTBG with confidence from Components-World.HK, 1 Year Warranty
Dowload NCP59800BMNADJTBG Details in PDFSee Product Specifications for product details.
Buy NCP59800BMNADJTBG with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NCP59800BMNADJTBG |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | IC REG LINEAR POS ADJ 1A 8DFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | |
|---|---|---|---|---|---|
| $0.082 | $0.077 | $0.072 | $0.068 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NCP59800BMNADJTBG | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | IC REG LINEAR POS ADJ 1A 8DFN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 292484 pcs | Data sheet | NCP59800 |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.5V @ 1A |
| Voltage - Output (Min/Fixed) | 2.2V | Voltage - Output (Max) | 6V |
| Voltage - Input (Max) | 6V | Supplier Device Package | 8-DFN (3x3) |
| Series | - | Protection Features | Over Current, Over Temperature |
| Packaging | Tape & Reel (TR) | Package / Case | 8-VDFN |
| PSRR | 77dB ~ 27dB (100Hz ~ 1MHz) | Output Type | Adjustable |
| Output Configuration | Positive | Other Names | NCP59800BMNADJTBGOSTR |
| Operating Temperature | -40°C ~ 125°C | Number of Regulators | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 27 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 2.2 V ~ 6 V 1A 8-DFN (3x3) | Current - Quiescent (Iq) | 450µA |
| Current - Output | 1A | Control Features | Enable |
