Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - LED Drivers > NCP5603GEVB

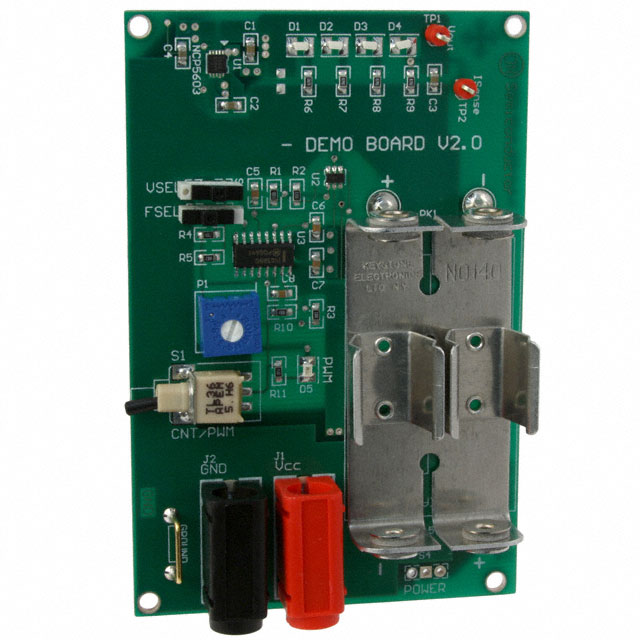

NCP5603GEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NCP5603GEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	NCP5603GEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5603G HI FREQ
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2934 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$13.184

Product parameter
Data sheet

Product parameter

Part Number	NCP5603GEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	EVAL BOARD FOR NCP5603G HI FREQ	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2934 pcs	Data sheet	NCP5603 NCP5603 EVB Test Procedure
Category	Development Boards, Kits, Programmers	Voltage - Output	4.5 V ~ 5 V
Voltage - Input	3 V ~ 3.6 V	Utilized IC / Part	NCP5603
Supplied Contents	Board(s)	Series	-
Outputs and Type	1, Non-Isolated	Other Names	NCP5603GEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Dimmable	Detailed Description	NCP5603 1, Non-Isolated Output LED Driver Evaluation Board
Current - Output / Channel	160mA
