Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - Linear Voltage Regulators > LV5683PGEVB

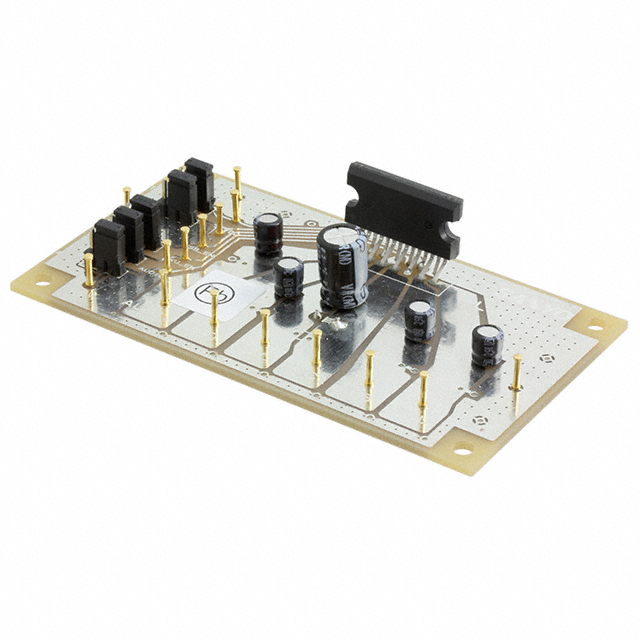

LV5683PGEVB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LV5683PGEVB with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LV5683PGEVB
Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVAL FOR LV5683P
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1713 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$22.545

Product parameter
Data sheet

Product parameter

Part Number	LV5683PGEVB	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	BOARD EVAL FOR LV5683P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1713 pcs	Data sheet	LV5683P
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	7 V ~ 16 V	Utilized IC / Part	LV5683P
Supplied Contents	Board(s)	Series	-
Regulator Type	Positive Fixed	Other Names	LV5683PGEVBOS
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	LV5683P 4 - Quad Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board	Current - Output	-
Channels per IC	4 - Quad	Board Type	Fully Populated
