H11N1SVM

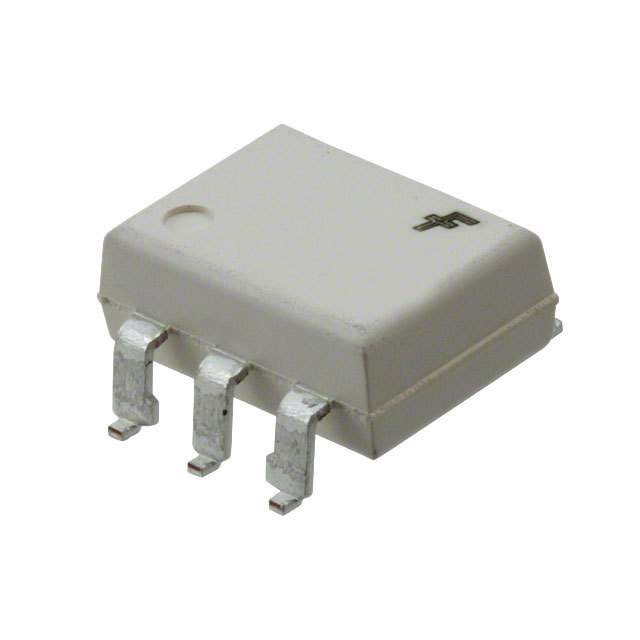

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H11N1SVM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H11N1SVM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | H11N1SVM |
---|---|
Manufacturer | AMI Semiconductor / ON Semiconductor |
Description | OPTOISO 4.17KV OPN COLL 6SMD |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
---|---|---|---|---|---|
$2.492 | $2.076 | $1.495 | $1.204 | $1.105 |
- Product parameter
- Data sheet
Product parameter
Part Number | H11N1SVM | Manufacturer | AMI Semiconductor / ON Semiconductor |
---|---|---|---|
Description | OPTOISO 4.17KV OPN COLL 6SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 33991 pcs | Data sheet | H11Nx-M |
Category | Isolators | Voltage - Supply | 4 V ~ 15 V |
Voltage - Isolation | 4170Vrms | Voltage - Forward (Vf) (Typ) | 1.4V |
Supplier Device Package | 6-SMD | Series | - |
Rise / Fall Time (Typ) | 7.5ns, 12ns | Propagation Delay tpLH / tpHL (Max) | 330ns, 330ns |
Packaging | Tube | Package / Case | 6-SMD, Gull Wing |
Output Type | Open Collector | Operating Temperature | -40°C ~ 85°C |
Number of Channels | 1 | Mounting Type | Surface Mount |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Inputs - Side 1/Side 2 | 1/0 | Input Type | DC |
Detailed Description | Logic Output Optoisolator 5MHz Open Collector 4170Vrms 1 Channel 6-SMD | Data Rate | 5MHz |
Current - Output / Channel | 50mA | Current - DC Forward (If) (Max) | 30mA |
Common Mode Transient Immunity (Min) | - |
