FOD3150TV

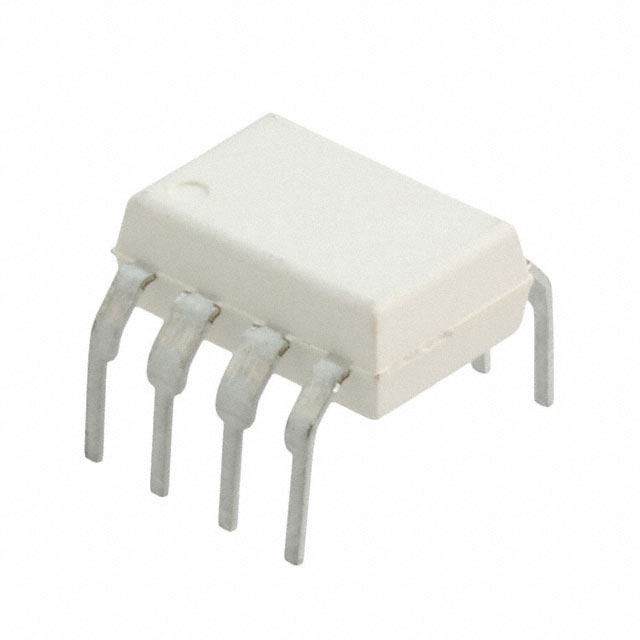

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FOD3150TV with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FOD3150TV with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
Part Number | FOD3150TV |
---|---|
Manufacturer | AMI Semiconductor / ON Semiconductor |
Description | OPTOISO 5KV 1CH GATE DRIVER 8DIP |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
---|---|---|---|---|---|
$0.748 | $0.662 | $0.427 | $0.341 | $0.293 |
- Product parameter
- Data sheet
Product parameter
Part Number | FOD3150TV | Manufacturer | AMI Semiconductor / ON Semiconductor |
---|---|---|---|
Description | OPTOISO 5KV 1CH GATE DRIVER 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 76818 pcs | Data sheet | FOD3150 |
Category | Isolators | Voltage - Supply | 15 V ~ 30 V |
Voltage - Isolation | 5000Vrms | Voltage - Forward (Vf) (Typ) | 1.5V |
Technology | Optical Coupling | Supplier Device Package | 8-DIP |
Series | - | Rise / Fall Time (Typ) | 60ns, 60ns |
Pulse Width Distortion (Max) | 300ns | Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
Packaging | Tube | Package / Case | 8-DIP (0.400", 10.16mm) |
Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Detailed Description | 1.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP |
Current - Peak Output | 1.5A | Current - Output High, Low | 1A, 1A |
Current - DC Forward (If) (Max) | 25mA | Common Mode Transient Immunity (Min) | 20kV/µs |
Approvals | IEC, UL |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
