FDMT80080DC

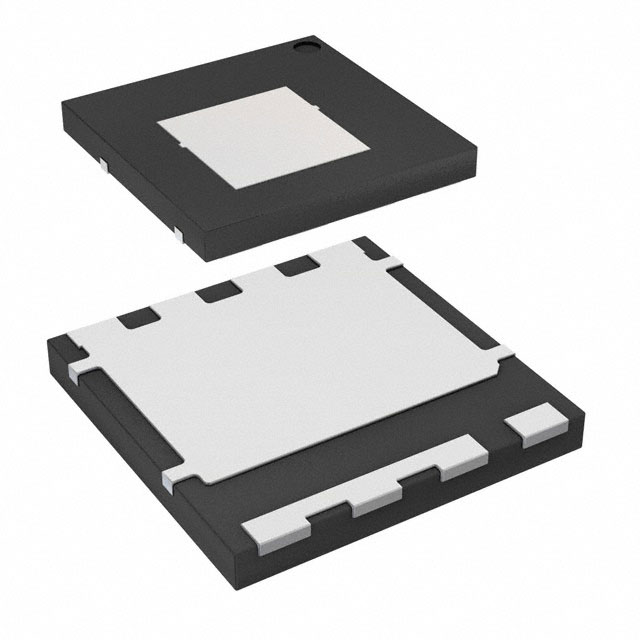

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy FDMT80080DC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy FDMT80080DC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | FDMT80080DC |
|---|---|
| Manufacturer | AMI Semiconductor / ON Semiconductor |
| Description | MOSFET N-CH 80V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $1.042 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | FDMT80080DC | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 80V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 37376 pcs | Data sheet | FDMT80080DC |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-Dual Cool™88 | Series | Dual Cool™, PowerTrench® |
| Rds On (Max) @ Id, Vgs | 1.35 mOhm @ 36A, 10V | Power Dissipation (Max) | 3.2W (Ta), 156W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerVDFN |
| Other Names | FDMT80080DCTR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 35 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 20720pF @ 40V | Gate Charge (Qg) (Max) @ Vgs | 273nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 8V, 10V | Drain to Source Voltage (Vdss) | 80V |
| Detailed Description | N-Channel 80V 36A (Ta), 254A (Tc) 3.2W (Ta), 156W (Tc) Surface Mount 8-Dual Cool™88 | Current - Continuous Drain (Id) @ 25°C | 36A (Ta), 254A (Tc) |
