LT1764AET#33PBF

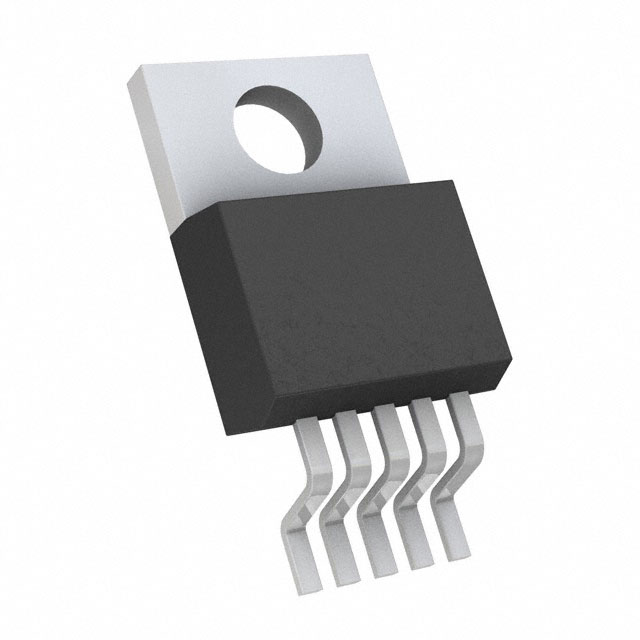

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LT1764AET#33PBF with confidence from Components-World.HK, 1 Year Warranty
Dowload LT1764AET#33PBF Details in PDFSee Product Specifications for product details.
Buy LT1764AET#33PBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LT1764AET#33PBF |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC REG LIN POS ADJ 3A TO220-5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $1.475 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | LT1764AET#33PBF | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | IC REG LIN POS ADJ 3A TO220-5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26478 pcs | Data sheet | TO-220-5(Short Leads) Flow 33 Pkg DrawingMac OS X ShortcutsLTspice FlyerLTspice IV Getting Started GuideLT1764A Datasheet |
| Category | Integrated Circuits (ICs) | Voltage Dropout (Max) | 0.66V @ 3A |
| Voltage - Output (Min/Fixed) | 1.21V | Voltage - Output (Max) | 20V |
| Voltage - Input (Max) | 20V | Supplier Device Package | TO-220-5 Flow 33 |
| Series | - | Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Packaging | Tube | Package / Case | TO-220-5 Formed Leads |
| PSRR | 63dB (120Hz) | Output Type | Adjustable |
| Output Configuration | Positive | Operating Temperature | -40°C ~ 125°C |
| Number of Regulators | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Linear Voltage Regulator IC Positive Adjustable 1 Output 1.21 V ~ 20 V 3A TO-220-5 Flow 33 | Current - Supply (Max) | 200mA |
| Current - Quiescent (Iq) | 1.5mA | Current - Output | 3A |
| Control Features | Enable | Base Part Number | LT1764 |
