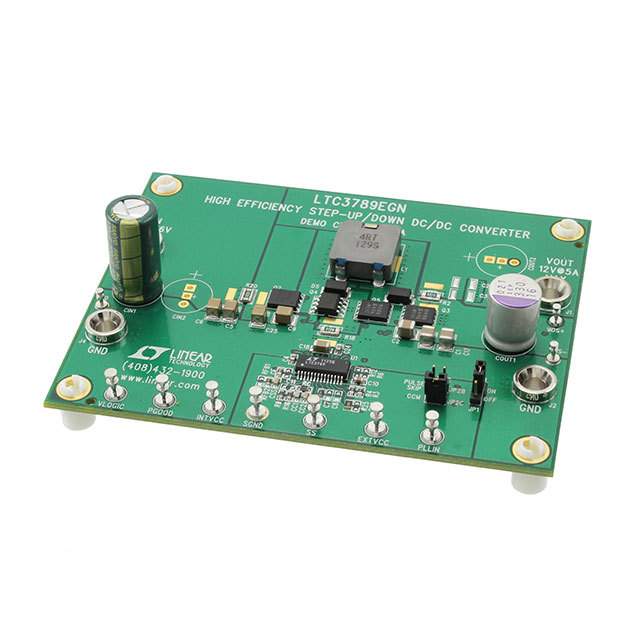

DC1523A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC1523A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC1523A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC1523A |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | EVAL BOARD BUCK-BOOST LTC3789 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $72.591 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC1523A | Manufacturer | ADI (Analog Devices, Inc.) |
|---|---|---|---|
| Description | EVAL BOARD BUCK-BOOST LTC3789 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 538 pcs | Data sheet | LTC3789 DatasheetLTspice FlyerLTspice IV Getting Started GuideDC1523A Demo Manual |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 12V |
| Voltage - Input | 5 V ~ 36 V | Utilized IC / Part | LTC3789 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Buck-Boost | Outputs and Type | 1, Non-Isolated |
| Other Names | DEMO 1523A | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Main Purpose | DC/DC, Step Up or Down |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 400kHz |
| Detailed Description | LTC3789 - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board | Current - Output | 5A |
| Board Type | Fully Populated | Base Part Number | LTC3789 |
